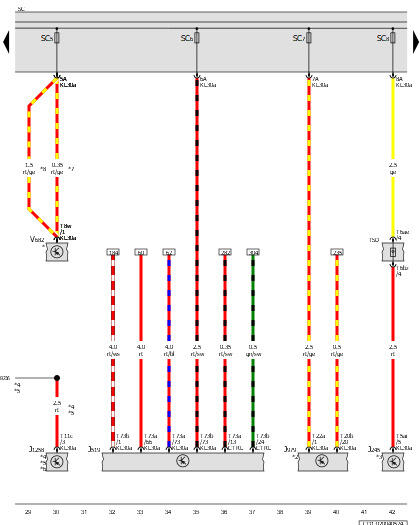

Sunroof Control Module, Vehicle Electrical System Control Module, Heating And Air Conditioning Control Module, Control Module 2 For Torque Vectoring, Fuse Panel C, Parking Lock Actuator

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J245

Sunroof Control Module

J519

Vehicle Electrical System Control Module

J979

Heating and Air Conditioning Control Module

J1258

Control Module 2 for Torque Vectoring

SC

Fuse Panel C

SC5

Fuse 5 (On Fuse Panel C)

SC6

Fuse 6 (On Fuse Panel C)

SC7

Fuse 7 (On Fuse Panel C)

SC8

Fuse 8 (On Fuse Panel C)

T5ai

5-Pin Connector, Black

T6ae

6-Pin Connector, Black

T6bz

6-Pin Connector, Black

T8w

8-Pin Connector, Black

T11c

11-Pin Connector, Black

T20b

20-Pin Connector, Black

T22a

22-Pin Connector, Black

T73a

73-Pin Connector, Black

T73b

73-Pin Connector, Black

TSD

Sunroof Coupling Point

V682

Parking Lock Actuator

B236

Positive Connection 6 (30a) (in Interior Wiring Harness)

*

Refer to Applicable Wiring Diagram for Automatic Transmission (DSG)

*2

Refer to Applicable A/C System Wiring Diagram

*3

Refer to the Applicable Sunroof Wiring Diagram

*4

For Vehicles with Top Sport Equipment

*5

From November 2020

*6

Refer to Applicable AWD Wiring Diagram

*7

Through July 2020

*8

From July 2020
