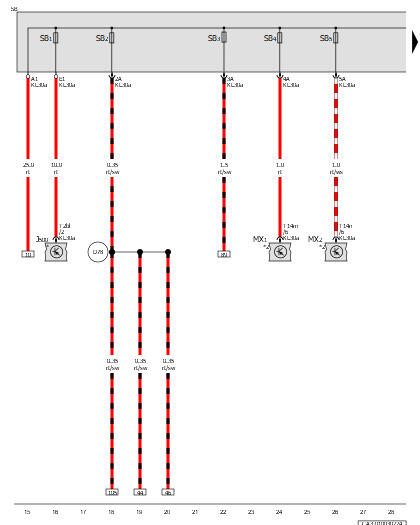

Power Steering Control Module, Left Front Headlamp, Right Front Headlamp, Fuse Panel B

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J500

Power Steering Control Module

MX1

Left Front Headlamp

MX2

Right Front Headlamp

SB

Fuse Panel B

SB1

Fuse 1 (On Fuse Panel B)

SB2

Fuse 2 (On Fuse Panel B)

SB3

Fuse 3 (On Fuse Panel B)

SB4

Fuse 4 (On Fuse Panel B)

SB5

Fuse 5 (On Fuse Panel B)

T2bl

2-Pin Connector, Black

T14m

14-Pin Connector, Black

T14n

14-Pin Connector, Black

D78

Positive Connection 1 (30a) (in Engine/Motor Compartment Wiring Harness)

*

Refer to the Applicable Steering Wiring Diagram

*2

Refer to Applicable Wiring Diagram for Headlamps
