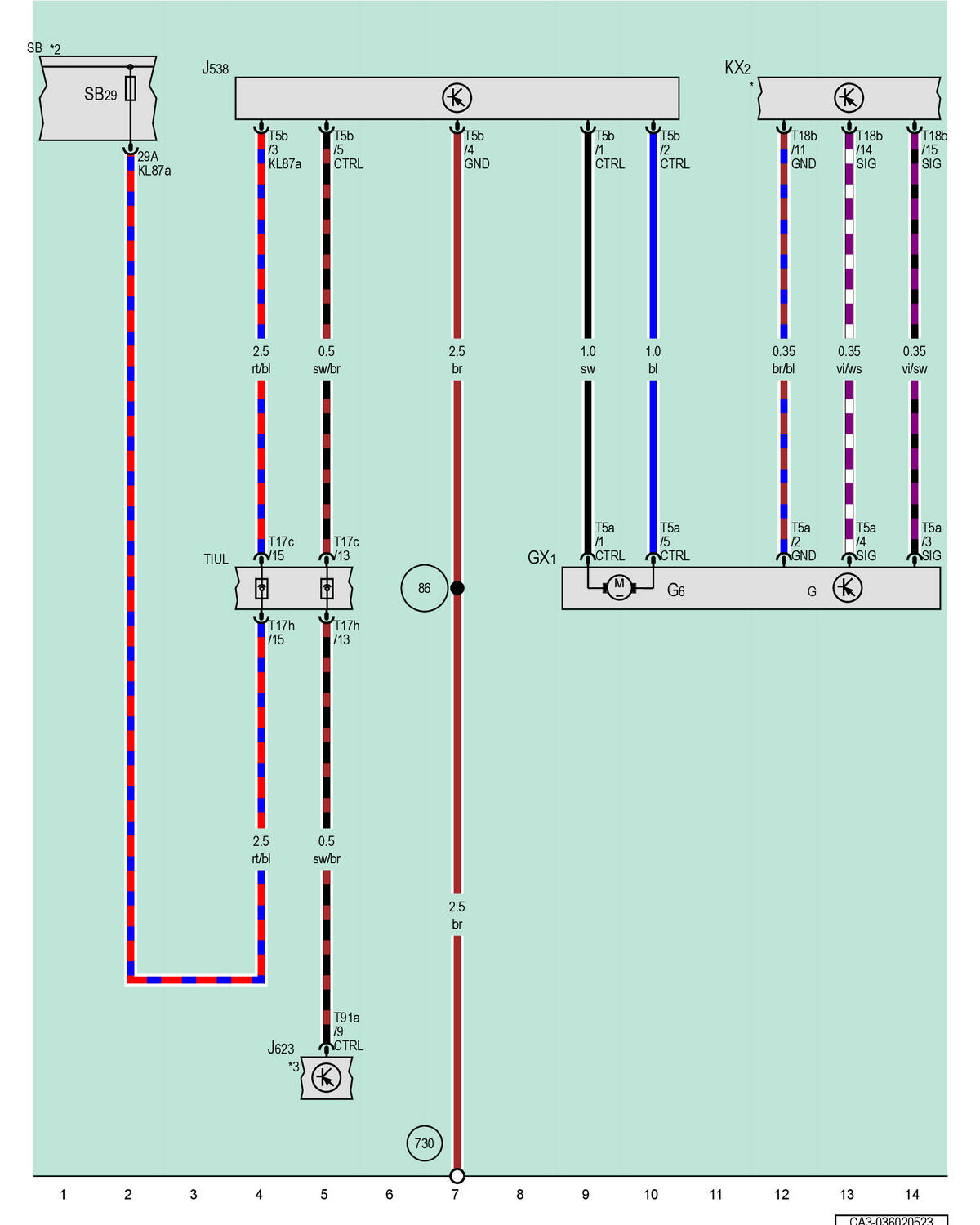

Fuel Delivery Unit, Fuel Pump Control Module, Engine/Motor Control Module, Instrument Cluster, Fuse Panel B

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

G

Fuel Level Sensor

GX1

Fuel Delivery Unit

G6

Transfer Fuel Pump

J538

Fuel Pump Control Module

J623

Engine/Motor Control Module

KX2

Instrument Cluster

SB

Fuse Panel B

SB29

Fuse 29 (On Fuse Panel B)

T5a

5-Pin Connector, Black

T5b

5-Pin Connector, Black

T17c

17-Pin Connector, Blue

T17h

17-Pin Connector, Blue

T18b

18-Pin Connector, Black

T91a

91-Pin Connector, Black

TIUL

Coupling Point in Interior, Bottom Left

86

Ground Connection 1 (in Rear Wiring Harness)

730

Ground Connection 1 on Right Rear Wheel Housing

*

Refer to Applicable Wiring Diagram for Instrument Cluster

*2

Refer to Applicable Wiring Diagram for Fuses in Engine/Motor Compartment

*3

Refer to Applicable Engine Wiring Diagram
