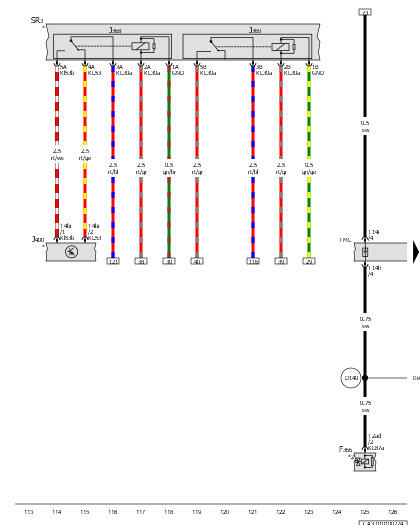

Cam Adjustment Actuator 1, Wiper Motor Control Module, Relay And Fuse Panel 3

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

F366

Cam Adjustment Actuator 1

J368

Wiper Motor Relay 1

J369

Wiper Motor Relay 2

J400

Wiper Motor Control Module

SR3

Relay and Fuse Panel 3

T2ad

2-Pin Connector, Yellow

T4bi

4-Pin Connector, Black

T14h

14-Pin Connector, Gray

T14i

14-Pin Connector, Gray

TML

Coupling Point in Engine/Motor Compartment, Left

D140

Fuel Injector Connection (in Engine Pre-Wiring Harness)

*

Refer to the Applicable Wiring Diagram for the Windshield Wiper/Washer System

*2

Refer to Applicable Engine Wiring Diagram
