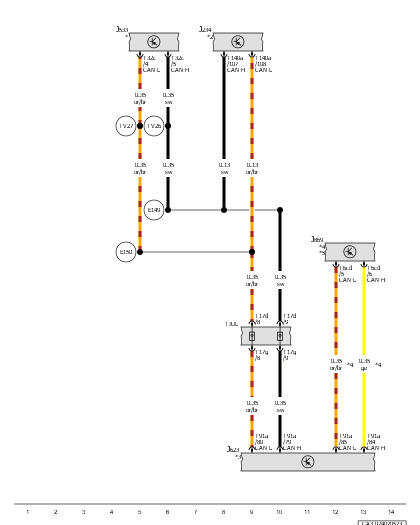

Airbag Control Module, Data Bus On Board Diagnostic Interface, Engine/Motor Control Module, Structure-Borne Sound Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J234

Airbag Control Module

J533

Data Bus on Board Diagnostic Interface

J623

Engine/Motor Control Module

J869

Structure-Borne Sound Control Module

T6cd

6-Pin Connector, Black

T17d

17-Pin Connector, Red

T17g

17-Pin Connector, Red

T32c

32-Pin Connector, Black

T91a

91-Pin Connector, Black

T140a

140-Pin Connector, Yellow

TIUL

Coupling Point in Interior, Bottom Left

E149

Connection 1 (CAN Bus Airbag Control Module, High)

E150

Connection 1 (CAN Bus Airbag Control Module, Low)

TV26

Bus Systems Wire Junction 1

TV27

Bus Systems Wire Junction 2

*

For Vehicles with Separate Data Bus On Board Diagnostic Interface

*2

Refer to Applicable Airbag Wiring Diagram

*3

Refer to Applicable Engine Wiring Diagram

*4

For Vehicles with Engine/Motor Sound Generation

*5

Refer to the Applicable Engine Sound Generator Wiring Diagram
