Ignition Coils, Removing And Installing: Removing

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Remove and disconnect the connector -2- for the Oxygen Sensor 1 Before Catalytic Converter -GX10- from the bracket.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

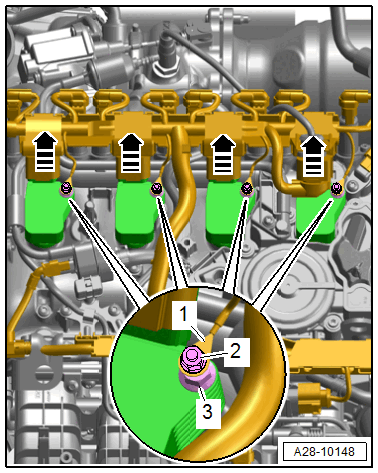

-- Remove the nut -2- and free up the ground wire -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connectors and remove from the ignition coils at the same time -arrows-.

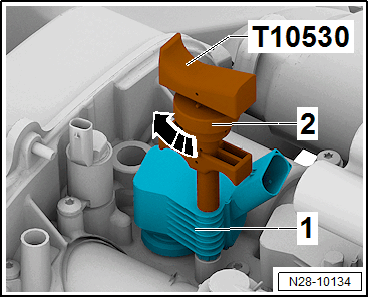

-- Insert the Puller :T10530  in the ignition coil opening -1-.

Fig 1: Identifying Puller T10530

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn the knurled nut -2- clockwise -arrow- until the puller is clamped.

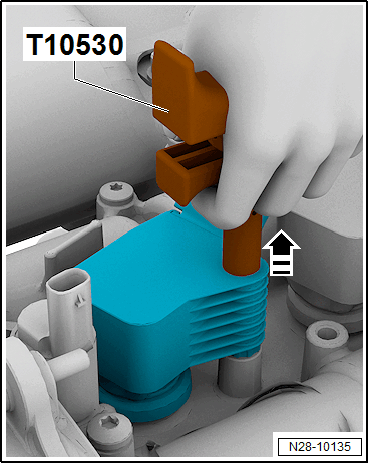

-- Remove the ignition coil carefully vertically -arrow- using the Puller :T10530  .

Fig 2: Identifying Puller T10530

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
