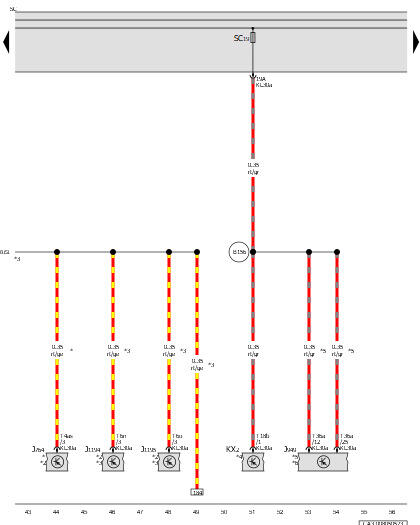

Electronic Steering Column Lock Control Module, Control Module For Emergency Call Module And Communication Unit, Burglary Protection Control Module 4, Burglary Protection Control Module 5, Instrument Cluster, Fuse Panel C

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J764

Electronic Steering Column Lock Control Module

J949

Control Module for Emergency Call Module and Communication Unit

J1194

Burglary Protection Control Module 4

J1195

Burglary Protection Control Module 5

KX2

Instrument Cluster

SC

Fuse Panel C

SC19

Fuse 19 (On Fuse Panel C)

T4as

4-Pin Connector, Black

T6n

6-Pin Connector, Black

T6o

6-Pin Connector, Black

T18b

18-Pin Connector, Black

T36a

36-Pin Connector, Black

B151

Positive Connection 3 (30a) (in Interior Wiring Harness)

B156

Positive Connection 30a (in Interior Wiring Harness)

*

For Vehicles with Power Steering Column Adjustment

*2

Refer to the Applicable Access/Start Authorization System Wiring Diagram

*3

Depending on Equipment

*4

Refer to Applicable Wiring Diagram for Instrument Cluster

*5

For Vehicles with Emergency Call Module

*6

Refer to Applicable Emergency Call Module Wiring Diagram
