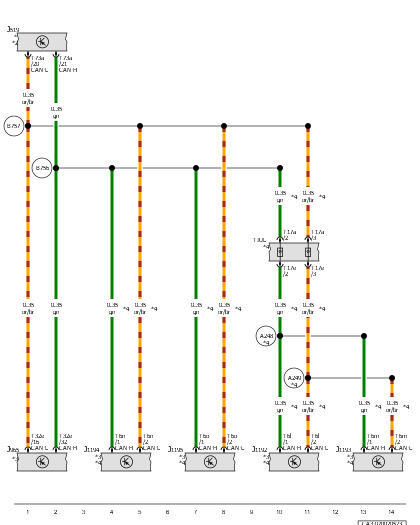

Vehicle Electrical System Control Module, Access/Start System Interface, Burglary Protection Control Module 2, Burglary Protection Control Module 3, Burglary Protection Control Module 4, Burglary Protection Control Module 5
J519
Vehicle Electrical System Control Module
J965
Access/Start System Interface
J1192
Burglary Protection Control Module 2
J1193
Burglary Protection Control Module 3
J1194
Burglary Protection Control Module 4
J1195
Burglary Protection Control Module 5
T6l
6-Pin Connector, Black
T6m
6-Pin Connector, Black
T6n
6-Pin Connector, Black
T6o
6-Pin Connector, Black
T17a
17-Pin Connector, Black
T17e
17-Pin Connector, Black
T32e
32-Pin Connector, Gray
T73a
73-Pin Connector, Black
TIUL
Coupling Point in Interior, Bottom Left
A248
CAN Bus High Connection 2 (in Engine/Motor Compartment Wiring Harness)
A249
CAN Bus Low Connection 2 (in Engine/Motor Compartment Wiring Harness)
B756
CAN Bus High Display and Control Connection 4
B757
CAN Bus Low Display and Control Connection 4
*
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*2
Refer to Applicable Wiring Diagram for Ground Concept in Vehicle Interior
*3
Refer to the Applicable Access/Start Authorization System Wiring Diagram
*4
Depending on Equipment
