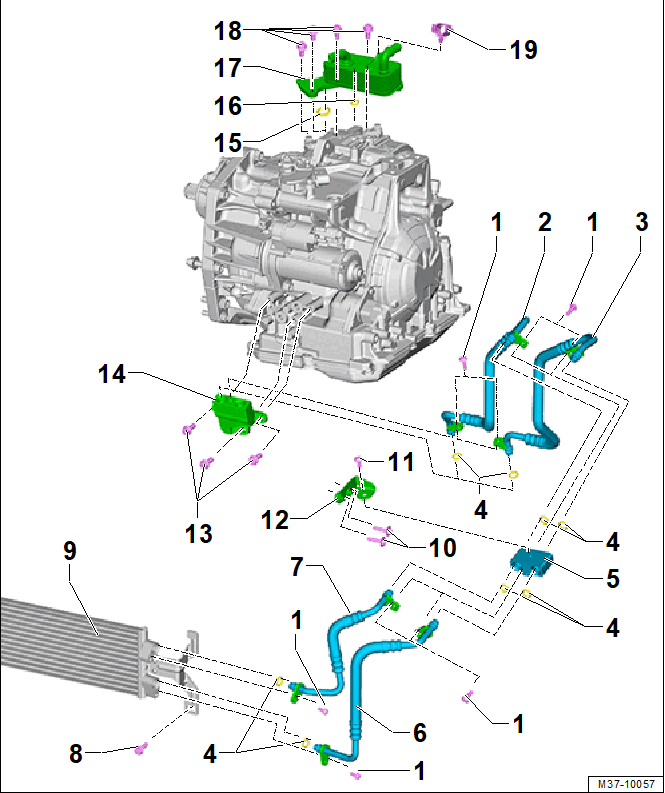

Overview - ATF Circuit, With ATF PREHEATER
- Bolt
- M6 x 22
- 8 Nm
- ATF Line
- From the thermostat to the adapter
- Removing and Installing. Refer to ATF LINES, REMOVING AND INSTALLING .
- ATF Line
- From the thermostat to the adapter
- Removing and Installing. Refer to ATF LINES, REMOVING AND INSTALLING .
- O-Rings
- Replace after removing
- Adapter
- ATF Line
- From the adapter to the ATF cooler
- Removing and Installing. Refer to ATF LINES, REMOVING AND INSTALLING .
- ATF Line
- From the adapter to the ATF cooler
- Removing and Installing. Refer to ATF LINES, REMOVING AND INSTALLING .
- Bolt
- Quantity 2, M6 x 17
- 4.5 Nm
- ATF Cooler
- Removing and Installing. Refer to ATF COOLER, REMOVING AND INSTALLING .
- Bolt
- Quantity 2, M6 x 30
- 20 Nm
- Bolt
- M6 x 22
- 8 Nm
- Bracket
- Bolt
- Quantity: 3, M8 x 25
- 20 Nm
- Thermostat
- Removing and Installing. Refer to THERMOSTAT, REMOVING AND INSTALLING .
- Replace the O-rings after disassembly
- O-Ring
- Can only be replaced together with the ATF cooler adapter
- O-Ring
- Can only be replaced together with the ATF cooler adapter
- ATF Preheater
- Removing and Installing. Refer to ATF PREHEATER, REMOVING AND INSTALLING .
- Bolt
- Quantity: 4, M8 x 25
- 20 Nm
- Clip
- For the selector lever cable
