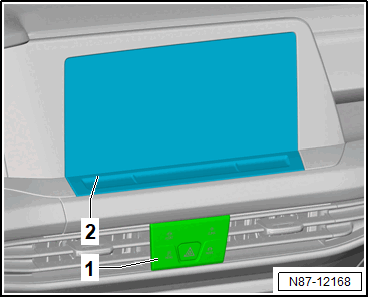

Component Location Overview - Display Control Head, From 06/12/2023

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Switch Module in Instrument Panel, Center -EX22-
   • With the A/C system button AC
   • Removing and Installing. Refer to Switch Module in Instrument Panel, Center -EX22-, REMOVING AND INSTALLING .
   • For the operating principle and further information, refer to the Owner's Manual.
   • Heater and A/C Controls EX21, removing and installing. Refer to HEATER AND A/C CONTROLS EX21, REMOVING AND INSTALLING
2. Front Information Display Control Head -J685-
   • Removing and Installing. Refer to Front Information Display Control Head -J685-, REMOVING AND INSTALLING .
   • For the operating principle and further information, refer to the Owner's Manual.
