Component Location Overview - Sound System

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

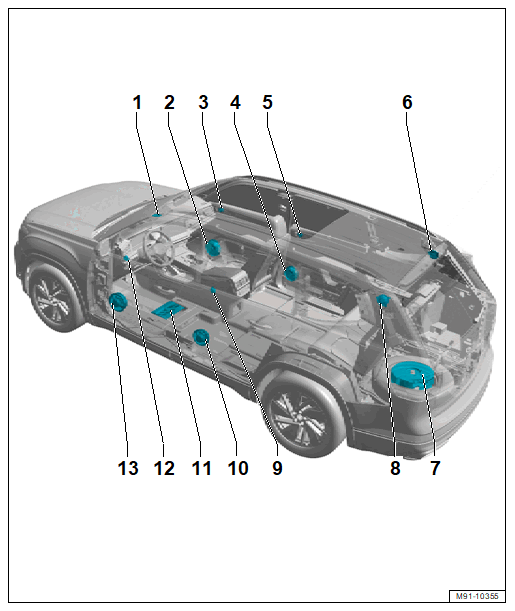

Center Speaker -R208-
- Inside the center of the instrument panel
- Removing and Installing. Refer to CENTER SPEAKER, REMOVING AND INSTALLING .
Right Front Bass Speaker -R23-
- In the front door at the bottom
- Removing and Installing. Refer to LEFT AND RIGHT FRONT BASS SPEAKER -R21- / -R23-, REMOVING AND INSTALLING .
Right Front Treble Speaker -R22-
- On the interior door mechanism of the front door trim panel
- Removing and Installing. Refer to LEFT AND RIGHT FRONT TREBLE SPEAKER -R20- / -R22-, REMOVING AND INSTALLING .
Right Rear Bass Speaker -R17- /Right Rear Speaker -R5-
- In the bottom of the rear door
- Vehicles with six speakers (8RL): Right Rear Speaker -R5-
- Vehicles with eight speakers (8RI): Right Rear Bass Speaker -R17-
- Removing and Installing. Refer to LEFT AND RIGHT REAR BASS SPEAKER -R15- / -R17-, REMOVING AND INSTALLING .
Right Rear Treble Speaker -R16-
- On the interior door mechanism of the rear door trim panel
- Removing and Installing. Refer to LEFT AND RIGHT REAR TREBLE SPEAKER -R14- / -R16-, REMOVING AND INSTALLING .
Right Effects Speaker -R210-
- On the D-pillar trim panel
- Removing and Installing. Refer to EFFECTS SPEAKER, REMOVING AND INSTALLING .
Subwoofer -R211-
- In the spare wheel well
- Removing and Installing. Refer to Subwoofer -R211-, REMOVING AND INSTALLING .
Left Effects Speaker -R209-
- On the D-pillar trim panel
- Removing and Installing. Refer to EFFECTS SPEAKER, REMOVING AND INSTALLING .
Left Rear Treble Speaker -R14-
- On the interior door mechanism of the rear door trim panel
- Removing and Installing. Refer to LEFT AND RIGHT REAR TREBLE SPEAKER -R14- / -R16-, REMOVING AND INSTALLING .
Left Rear Bass Speaker -R15- /Left Rear Speaker -R4-
- In the bottom of the rear door
- Vehicles with six speakers (8RL): Left Rear Speaker -R4-
- Vehicles with eight speakers (8RM)/ "Dynaudio" sound system (9VX): Left Rear Bass Speaker -R15-
- Removing and Installing. Refer to LEFT AND RIGHT REAR BASS SPEAKER -R15- / -R17-, REMOVING AND INSTALLING .
Digital Sound System Control Module -J525-
- Under the left front seat
- Removing and Installing. Refer to Digital Sound System Control Module -J525-, REMOVING AND INSTALLING .
Left Front Treble Speaker -R20-
- On the interior door mechanism of the front door trim panel
- Removing and Installing. Refer to LEFT AND RIGHT FRONT TREBLE SPEAKER -R20- / -R22-, REMOVING AND INSTALLING .
Left Front Bass Speaker -R21-
- In the front door at the bottom
- Removing and Installing. Refer to LEFT AND RIGHT FRONT BASS SPEAKER -R21- / -R23-, REMOVING AND INSTALLING .
