External Multimedia Device Connection In Front, Removing And Installing: Removing

-- Turn off all electrical equipment.

-- Switch off the ignition.

-- Place the vehicle key outside of the passenger compartment.

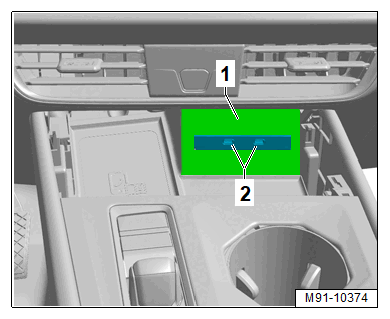

-- Remove the cover in the front center console storage compartment -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

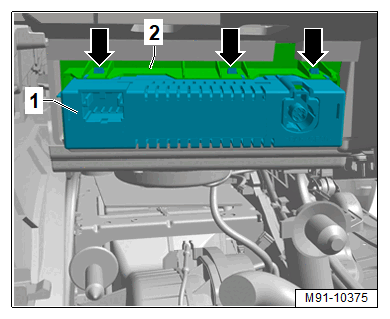

-- Release and disconnect the connectors from the external multimedia device connection -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the catches -arrows-.

-- At the same time remove the USB connection -1- from the trim -2- in the front center console storage compartment.
