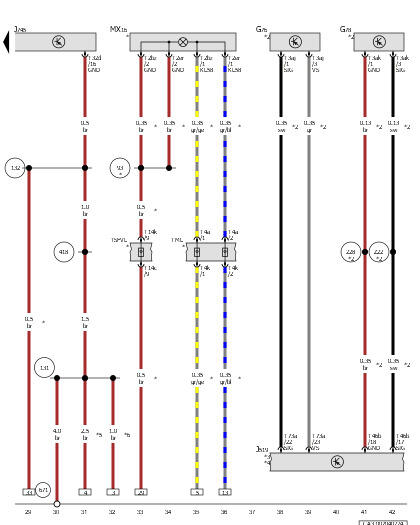

Left Rear Level Control System Sensor, Left Front Level Control System Sensor, Vehicle Electrical System Control Module, Cornering Lamp And Headlamp Range Control Module, Front Emblem Contour Illumination Module
G76
Left Rear Level Control System Sensor
G78
Left Front Level Control System Sensor
J519
Vehicle Electrical System Control Module
J745
Cornering Lamp and Headlamp Range Control Module
MX16
Front Emblem Contour Illumination Module
T2bz
2-Pin Connector, Black
T2er
2-Pin Connector, Gray
T3aj
3-Pin Connector, Black
T3ak
3-Pin Connector, Black
T4a
4-Pin Connector, Black
T4k
4-Pin Connector, Black
T14c
14-Pin Connector, Black
T14k
14-Pin Connector, Black
T32d
32-Pin Connector, Gray
T46b
46-Pin Connector, Black
T73a
73-Pin Connector, Black
TML
Coupling Point in Engine/Motor Compartment, Left
TSFVL
Coupling Point on Left Front Bumper
93
Engine Block Ground Connection (in Ignition System Wiring Harness)
131
Ground Connection 2 (in Engine/Motor Compartment Wiring Harness)
132
Ground Connection 3 (in Engine/Motor Compartment Wiring Harness)
228
Connection (in Wiring Harness)
418
Ground Connection 10 (in Engine/Motor Compartment Wiring Harness)
671
Ground Connection 1 on Left Front Longitudinal Member
Z22
Positive Connection (30) (in Self-Leveling Suspension Wiring Harness)
*
For Vehicles with Outer Contour Illumination
*2
For Vehicles with Headlamp Range Control
*3
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*4
Refer to Applicable Wiring Diagram for Ground Concept in Vehicle Interior
*5
Through February 2024
*6
From February 2024
