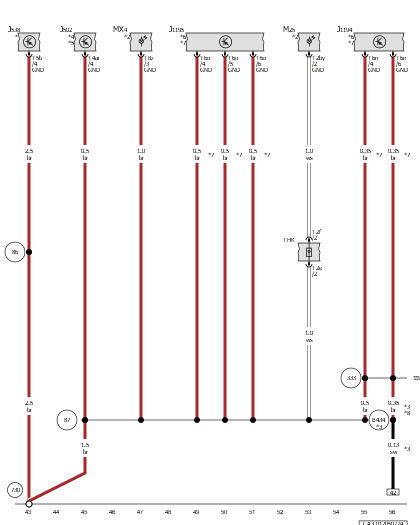

Tire Pressure Monitoring Control Module, Fuel Pump Control Module, Burglary Protection Control Module 4, Burglary Protection Control Module 5, Right Tail Lamp, High-Mounted Brake Lamp Bulb

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J502

Tire Pressure Monitoring Control Module

J538

Fuel Pump Control Module

J1194

Burglary Protection Control Module 4

J1195

Burglary Protection Control Module 5

MX4

Right Tail Lamp

M25

High-Mounted Brake Lamp Bulb

T2by

2-Pin Connector, Black

T2e

2-Pin Connector, Black

T2f

2-Pin Connector, Black

T4ai

4-Pin Connector, Gray

T5b

5-Pin Connector, Black

T6n

6-Pin Connector, Black

T6o

6-Pin Connector, Black

T8z

8-Pin Connector, Black

THK

Rear Lid Coupling Point

86

Ground Connection 1 (in Rear Wiring Harness)

87

Ground Connection 2 (in Rear Wiring Harness)

333

Ground Connection 5 (in Rear Wiring Harness)

730

Ground Connection 1 on Right Rear Wheel Housing

B434

Connection 1 (Shield) Inside Main Wiring Harness

*

Refer to Applicable Fuel System Wiring Diagram

*2

Refer to Applicable Tail Lamp Wiring Diagram

*3

For Vehicles with Rearview Camera System

*4

Refer to Applicable Wiring Diagram for the Tire Pressure Monitoring System

*5

For Vehicles with Tire Pressure Monitoring

*6

Refer to the Applicable Access/Start Authorization System Wiring Diagram

*7

Depending on Equipment

*8

Omitted as a Running Change
