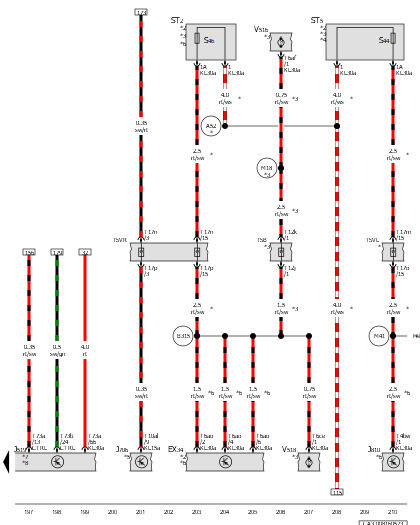

Right Front Seat Adjustment Control Head, Vehicle Electrical System Control Module, Seat Occupant Detection System Control Module, Driver Seat Adjustment Control Module, Fuse Panel 2, Fuse Panel 5, Right Front Seat Backrest Fan 1, Right Front Seat Cushion Fan 1
EX34
Right Front Seat Adjustment Control Head
J519
Vehicle Electrical System Control Module
J706
Seat Occupant Detection System Control Module
J810
Driver Seat Adjustment Control Module
ST2
Fuse Panel 2
ST5
Fuse Panel 5
S44
Driver Power Seat Adjustment Circuit Breaker 1
S46
Front Passenger Power Seat Adjustment Circuit Breaker 1
T4bw
4-Pin Connector, Black
T6af
6-Pin Connector, Black
T6ao
6-Pin Connector, Black
T6ce
6-Pin Connector, Black
T10al
10-Pin Connector, Black
T12j
12-Pin Connector, Black
T12k
12-Pin Connector, Black
T17m
17-Pin Connector, Red
T17n
17-Pin Connector, Red
T17o
17-Pin Connector, Red
T17p
17-Pin Connector, Red
T73a
73-Pin Connector, Black
T73b
73-Pin Connector, Black
TSB
Front Passenger Seat Backrest Coupling Point
TSVL
Left Front Seat Coupling Station
TSVR
Right Front Seat Coupling Station
V516
Right Front Seat Backrest Fan 1
V518
Right Front Seat Cushion Fan 1
A52
Positive Connection 2 (30) (in Instrument Panel Wiring Harness)
B315
Positive Connection 1 (30a) (in Main Wiring Harness)
M18
Connection 1 (in Front Passenger Seat Adjustment Wiring Harness)
M41
Connection 1 (in Driver Seat Wiring Harness)
*
Depending on Equipment
*2
Refer to Applicable Seat Adjustment Wiring Diagram
*3
For Vehicles with Seat Ventilation
*4
For Vehicles with Adjustable Seats
*5
Refer to Applicable Airbag Wiring Diagram
*6
Driver Memory Seat
*7
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*8
Refer to Applicable Wiring Diagram for Ground Concept in Vehicle Interior
