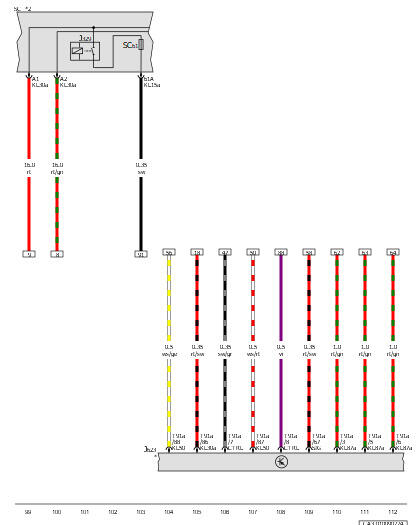

Engine/Motor Control Module, Fuse Panel C

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J329

Terminal 15 Power Supply Relay

J623

Engine/Motor Control Module

SC

Fuse Panel C

SC61

Fuse 61 (On Fuse Panel C)

T91a

91-Pin Connector, Black

*

Refer to Applicable Engine Wiring Diagram

*2

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
