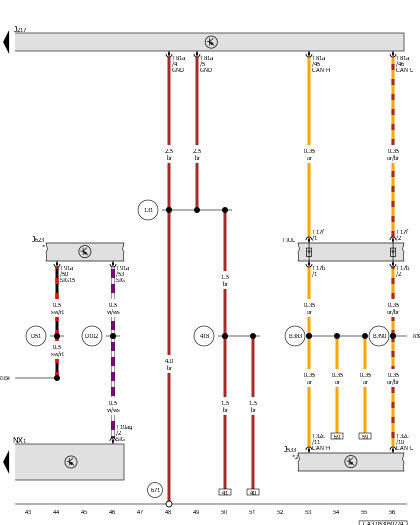

Transmission Control Module, Data Bus On Board Diagnostic Interface, Engine/Motor Control Module, Transmission
J217
Transmission Control Module
J533
Data Bus on Board Diagnostic Interface
J623
Engine/Motor Control Module
NX1
Transmission
T10ag
10-Pin Connector, Black
T17b
17-Pin Connector, Brown
T17f
17-Pin Connector, Brown
T32c
32-Pin Connector, Black
T81a
81-Pin Connector, Black
T91a
91-Pin Connector, Black
TIUL
Coupling Point in Interior, Bottom Left
131
Ground Connection 2 (in Engine/Motor Compartment Wiring Harness)
418
Ground Connection 10 (in Engine/Motor Compartment Wiring Harness)
671
Ground Connection 1 on Left Front Longitudinal Member
B383
Powertrain CAN Bus High Connection 1 (in Main Wiring Harness)
B390
Powertrain CAN Bus Low Connection 1 (in Main Wiring Harness)
D51
Positive Connection 1 (15) (in Engine/Motor Compartment Wiring Harness)
D102
Connection 2 (in Engine/Motor Compartment Wiring Harness)
D154
Positive Connection 3 (15) (in Engine/Motor Compartment Wiring Harness)
*
Refer to Applicable Engine Wiring Diagram
*2
Refer to Applicable Wiring Diagram for Data Bus Networking
