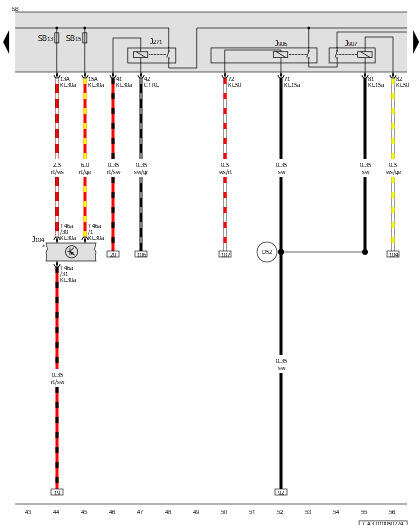

Abs Control Module, Fuse Panel B

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J104

ABS Control Module

J271

Motronic Engine Control Module Power Supply Relay

J906

Starter Relay 1

J907

Starter Relay 2

SB

Fuse Panel B

SB13

Fuse 13 (On Fuse Panel B)

SB15

Fuse 15 (On Fuse Panel B)

T46a

46-Pin Connector, Black

D52

Positive Connection (15a) (in Engine/Motor Compartment Wiring Harness)

*

Refer to Applicable Brake System Wiring Diagram
