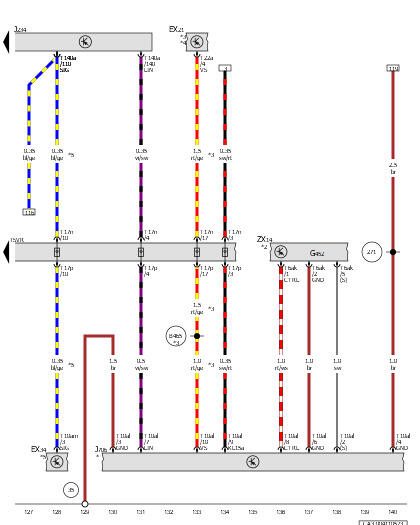

Heater And A/C Controls, Right Front Seat Adjustment Control Head, Airbag Control Module, Seat Occupant Detection System Control Module, Front Passenger Seat Heating Element With Passenger Occupant Detection System Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

EX21

Heater and A/C Controls

EX34

Right Front Seat Adjustment Control Head

G452

Seat Occupant Detection System Pressure Sensor

J234

Airbag Control Module

J706

Seat Occupant Detection System Control Module

T6ak

6-Pin Connector, Black

T10al

10-Pin Connector, Black

T10am

10-Pin Connector, Black

T17n

17-Pin Connector, Red

T17p

17-Pin Connector, Red

T22a

22-Pin Connector, Black

T140a

140-Pin Connector, Yellow

TSVR

Right Front Seat Coupling Station

ZX14

Front Passenger Seat Heating Element with Passenger Occupant Detection System Control Module

35

Ground Connection Under Front Passenger Seat

271

Ground Connection 3 (in Front Wiring Harness)

B465

Connection 1 (in Main Wiring Harness)

*

Refer to the Applicable Heated Seats Wiring Diagram

*2

Pre-Wired Component

*3

For Vehicles with Seat Heating

*4

Refer to Applicable A/C System Wiring Diagram

*5

Driver Memory Seat
