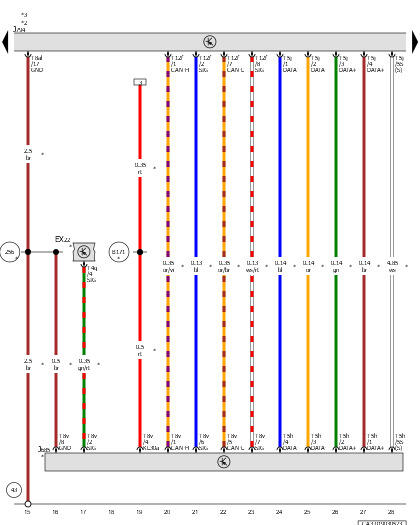

Center Instrument Panel Switch Module, Front Information Display Control Head, Information Electronics Control Module 1
EX22
Center Instrument Panel Switch Module
J685
Front Information Display Control Head
J794
Information Electronics Control Module 1
T4q
4-Pin Connector, Red
T5h
5-Pin Connector, Blue
T5j
5-Pin Connector, Purple
T8al
8-Pin Connector, Black
T8v
8-Pin Connector, Black
T12f
12-Pin Connector, Gray
43
Ground Connection on A-Pillar, Lower Right
256
Ground Connection 2 (in Radio Wiring Harness)
B171
Positive Connection 3 (30) (in Interior Wiring Harness)
*
For Vehicles with Navigation System
*2
Refer to Applicable Sound System Wiring Diagram
*3
Refer to Applicable Wiring Diagram for USB Connection for Data Transfer
