Overview - Final Drive

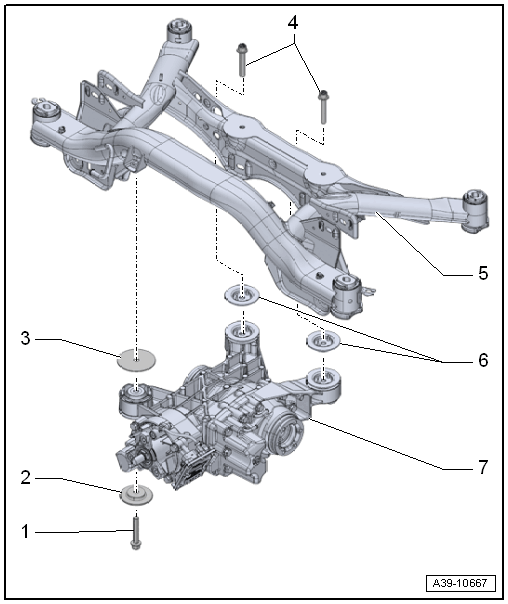

Fig 1: Exploded View Of Final Drive

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bolt
- 60 Nm +180°
- Replace after removing
- Quantity: 3
Stop Washer
Washer
- Installation position: the bevel (small diameter) faces the subframe
Bolts
- 60 Nm +180°
- Replace after removing
Rear Subframe
Stop Washers
Rear Final Drive
- Removing and Installing. Refer to FINAL DRIVE, REMOVING AND INSTALLING .
- Bonded Rubber Bushing, Removing and Installing. Refer to BONDED RUBBER BUSHING, REMOVING AND INSTALLING .
