Overview - Rear Display And Control Head

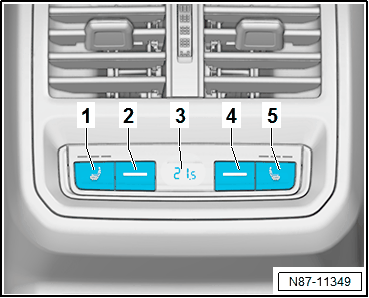

GWWN87-11349Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Seat Heating Button --
    • Optional
    • The seat heating has three settings. An LED indicates which setting is selected.
    • If no LED is illuminated, the seat heating is switched off.
  2. Thermostat Button
    • The selected temperature will be shown in the display.
  3. Temperature Display
    • Shows the set temperature
  4. Thermostat Button
    • The selected temperature will be shown in the display.
  5. Seat Heating Button --
    • Optional
    • The seat heating has three settings. An LED indicates which setting is selected.
    • If no LED is illuminated, the seat heating is switched off.
