Outside Air Temperature Sensor -G17-, REMOVING AND INSTALLING: Removing

NOTE:

Different bumper versions.

Bumper removal is on necessary on vehicles in which the Outside Air Temperature Sensor -G17- cannot be removed through the bumper.

-- If necessary, remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

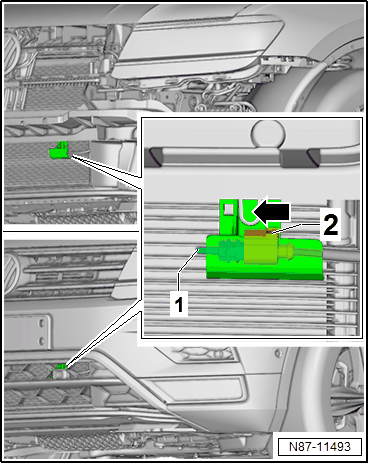

-- Disengage the clip -arrow-.

-- Remove the Outside Air Temperature Sensor -G17- -1- from the retainer downward.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -2-.
