Outside Air Temperature Sensor -G17-, REMOVING AND INSTALLING: Installing

-- Connect the connector -2-.

-- Engage the clip -arrow-.

NOTE:

Ensure that the connector is seated correctly (water entry).

Version 2

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

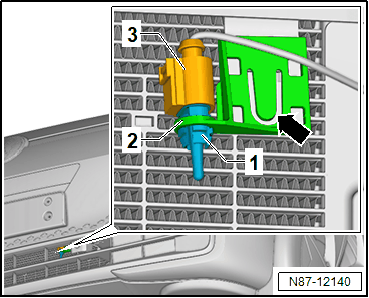

Removing

-- Grasp through the air intake pipe in the bumper.

-- Clip the Outside Air Temperature Sensor -G17- -1- with the bracket -arrow-.

-- Disconnect the connector -3-.

-- Disconnect the Outside Air Temperature Sensor -G17- -1- from the bracket -2-.

Installing

NOTE:

Ensure that the connector is seated correctly (water entry).

-- Install in reverse order of removal.
