Footwell Vent Temperature Sensor -G192-, REMOVING AND INSTALLING: Removing

NOTE:

Only for vehicles with Climatronic. For vehicles with an electric-manual climate control system, the openings in the air ducts are sealed with plugs.

-- Remove the driver side footwell vent. Refer to DRIVER SIDE FOOTWELL VENT, REMOVING AND INSTALLING .

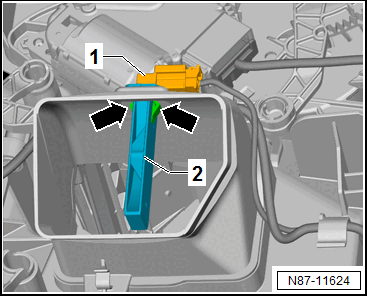

-- Disconnect the connector -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

When levering using the Trim Removal Wedge :3409 both locking tabs are pressed together -arrows-.

-- Pry out the Footwell Vent Temperature Sensor -G192- -2- using the Trim Removal Wedge :3409 from the evaporator housing.
