Window Guide, Removing And Installing: Removing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the inner window shaft strip. Refer to INNER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .

-- Remove the outer window shaft strip. Refer to OUTER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .

-- Depending on the version, remove the window guide trim molding. Refer to REAR DOOR WINDOW GUIDE TRIM MOLDING, REMOVING AND INSTALLING .

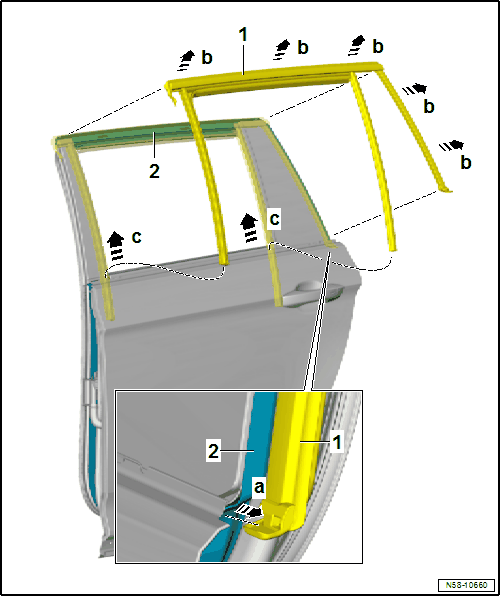

-- Loosen the window guide -1- on the rear end from the door in direction of -arrow a-.

-- Roll the window guide sealing lip -1- off the door flange -2- from the inside.

-- Remove the window guide -1- from the door mounts in direction of -c arrows-.

-- Remove the window guide -1- from the door flange -2- all the way around in direction of -arrows b-.
