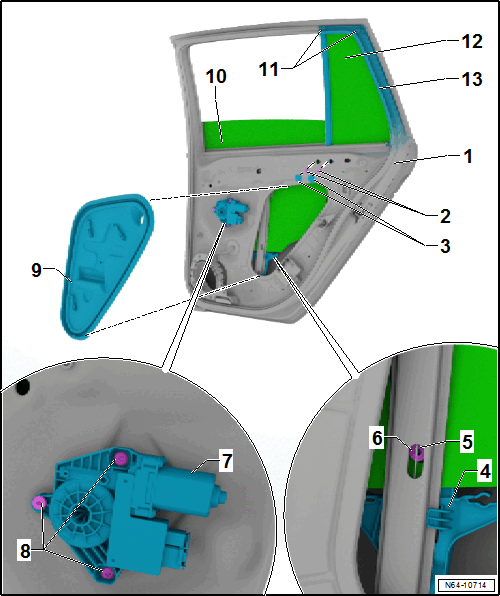

Overview - Rear Door Window
- Rear Door
- Bolt
- 6 Nm
- Quantity: 2
- Sticker
- Diameter 28 mm
- Quantity: 2
- Window Regulator
- Removing and Installing. Refer to WINDOW GUIDE, REMOVING AND INSTALLING .
- Expanding Pin
- Together with the spreader plug for attaching the door window
- Spreader Plug
- Together with the expanding pin for attaching the door window
- Window Regulator Motor
- Removing and Installing. Refer to WINDOW REGULATOR MOTOR, REMOVING AND INSTALLING .
- Bolt
- 3 Nm
- Quantity: 3
- Door Inner Cover
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
- Door Window
- Removing and Installing. Refer to REAR DOOR WINDOW, REMOVING AND INSTALLING .
- Catch
- Component of the fixed door window
- Quantity: 2
- Fixed Door Window
- Removing and Installing. Refer to FIXED REAR DOOR WINDOW, REMOVING AND INSTALLING .
- Seal
