Outer Window Shaft Strip, Removing And Installing: Removing
The outer window shaft strip has a metal insert in the center.
If it gets bent, the outer window shaft strip can longer be straightened out again. It will remain "wavy".
Therefore the outer window shaft strip must be removed and installed evenly without bending it.
The removal and installation is only for the left outer window shaft strip. Removing and installing the right window shaft strip is identical.
Vehicles with a Trim Molding on the Window Guide:
-- Loosen the trim molding from the window guide in the area of the stationary door window. Refer to DOOR WINDOW GUIDE TRIM MOLDING, REMOVING AND INSTALLING .
Continuation for All Vehicles:

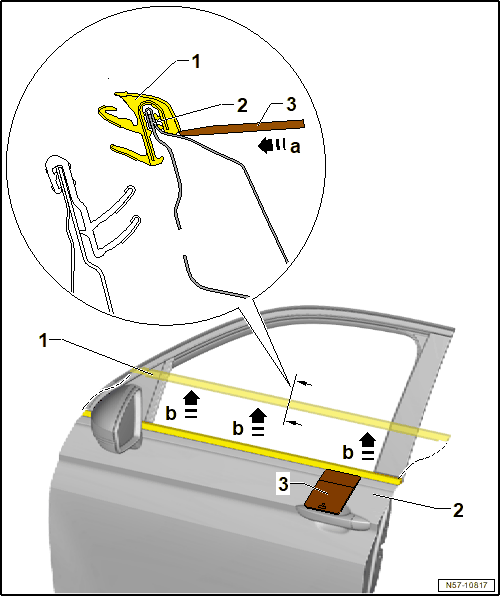

-- Guide the Lever - Wedge: T10039/1 -3- under the window shaft strip in direction of -arrow a-.
-- Slightly loosen the outer window shaft strip -1- evenly from the door flange -2- in direction of -b arrows-.
-- Remove the outer window shaft strip -1- evenly from the door flange -2- in direction of -arrows b-. Do not bend the strip while doing so.
