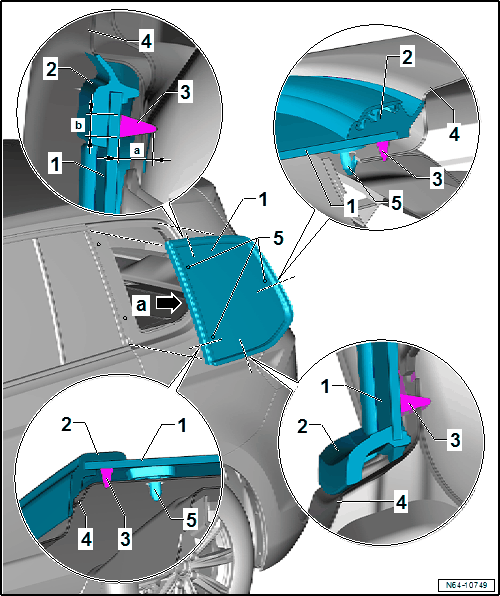

Overview - Rear Side Window
- Side Window
- Side window, removing. Refer to REAR SIDE WINDOW, REMOVING AND INSTALLING .
- Seal
- Component part of side window.
- PUR Adhesive Sealant
- Bead diameter: Height = 10 mm -dimension a-, width = 6.5 mm -dimension b- (including pre-coating, residual material on window glass and window glass flange)
- Minimum Curing Time. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
- Beginning and end of the adhesive bead at the -arrow-
- Body Flange
