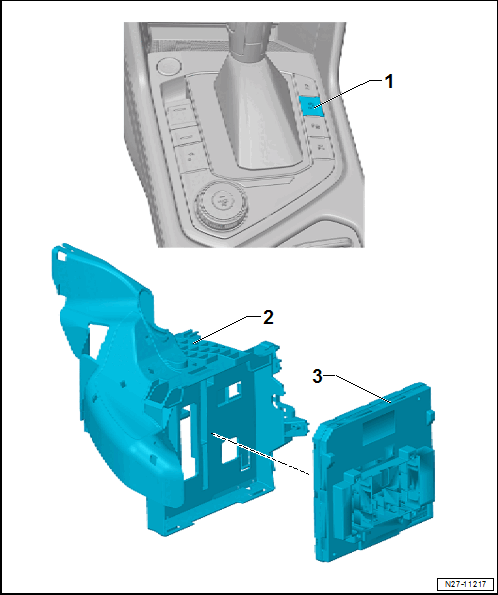

Component Location Overview - Start/Stop System

NOTE:

Component locations for LHD are shown. Component locations for RHD are identical.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Start/Stop Mode Button -E693-
Bracket
- for Vehicle Electrical System Control Module -J519-
Vehicle Electrical System Control Module -J519-
- Component Location Overview. Refer to OVERVIEW - VEHICLE ELECTRICAL SYSTEM CONTROL MODULE .
