Lock Cylinder, Removing And Installing: Installing

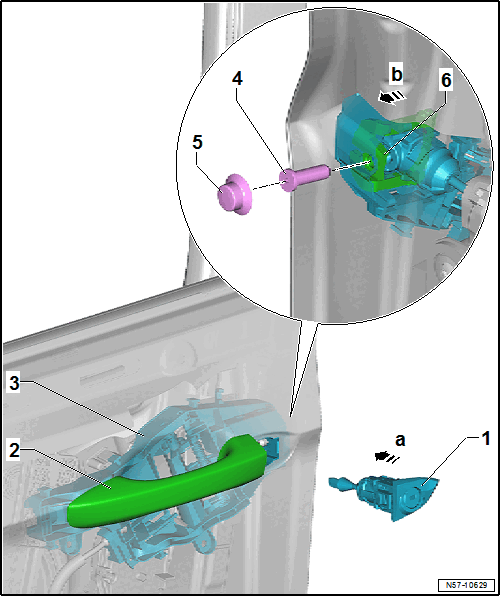

-- Install the lock cylinder housing -1- into the mounting bracket -3- at a right angle in direction of -arrow a-.
-- Install the bolts -4- in the mounting bracket. The locking mechanism -6- pulls at the same time automatically in the position in direction of -arrow b-.
The door handle -2- swings automatically on to door.
NOTE:
The lock cylinder housing must be pressed onto the outer door panel while installing.
Perform the rest of the installation in the reverse order of removal.
- Then a function test must be performed with the door opened.
