Transmission, Removing
Special tools and workshop equipment required
- Transmission Support :3282
- Engine and Gearbox Jack :VAS6931
- Engine Bung Set :VAS6122
- Insert Tool - 18mm :T10509 or :T10179
- Socket - Xzn 14 :T10061
- Tensioning Strap :T10038 (quantity: 2)
- Socket - Sw15 :V/175
Removing
-- Move the selector lever to >>P<<.
-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .
-- Remove the battery and the battery tray. Refer to BATTERY TRAY, REMOVING AND INSTALLING .
-- Pry the selector lever cable -1- off the selector lever -2-, for example, using a wrench.
-- Disconnect the connector -6- from the Multifunction Transmission Range Switch -F125- and free up the wire at the bracket.
-- Remove the bolts -5- from the cable bracket -4-. Do not remove the lock washer -3-.
-- Disengage the gearshift lever cable -1- from the clip -2-.
Do not bend or kink the selector lever cable.
So that the cable is not damaged when removing and installing the transmission, use, for example, a cable tie to secure the cable on the body in a suitable position.
-- Loosen the hose clamp -1- and remove the air duct hose from the charge air cooler.
-- Free up the coolant hose.

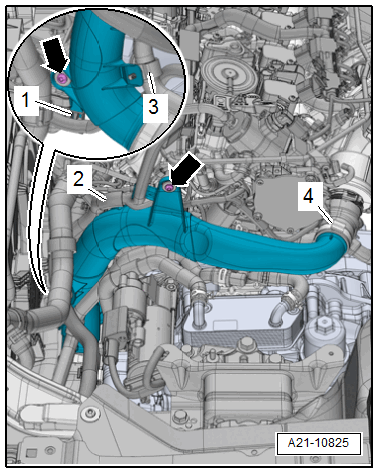

-- Free up the wiring harnesses -1 and 2- on the air duct pipe.
-- Loosen the screw-type clamp -4-.
-- Remove the bolts -arrows- and remove the air duct pipe.
-- Disconnect the connector -1-.
-- Remove the secondary air injection hose -2- by pressing the release buttons on both sides.
-- Remove the starter. Refer to STARTER, REMOVING AND INSTALLING .
-- Remove the upper bolts -arrows- connecting the transmission to the engine, for example, with a 12-point flex head socket wrench.
-- Support the engine in the installation position. Refer to ENGINE, SUPPORTING IN INSTALLATION POSITION .
-- Lightly pretension the engine/transmission assembly and Engine Support Bridge using the Spindles.
-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .
-- Remove the left front wheel housing liner. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

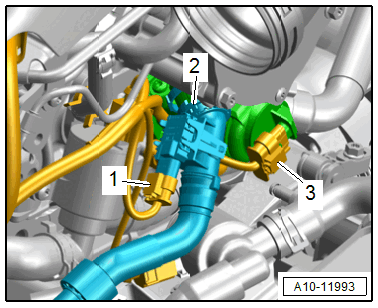

-- Remove the connector from the transmission as follows Push the retainer -1- in the direction of the -arrow-, open the hook -2- and then remove the connector -3- from the transmission.
-- Remove the bolt -A- and the ATF lines -2- from the thermostat -1-.
-- Seal the ATF lines and connections on the thermostat with suitable plugs taken from the :VAS6122 .
Only when installing a new transmission, remove the thermostat. Refer to THERMOSTAT, REMOVING AND INSTALLING .
-- Remove the subframe. Refer to OVERVIEW - SUBFRAME .
-- Remove the right and left drive axle from the transmission. Refer to DRIVE AXLE, REMOVING AND INSTALLING .
-- Secure both drive axles to the suspension strut using the Tensioning Strap :T10038 .
Do not damage the surface protection of the shafts.
FWD Vehicles

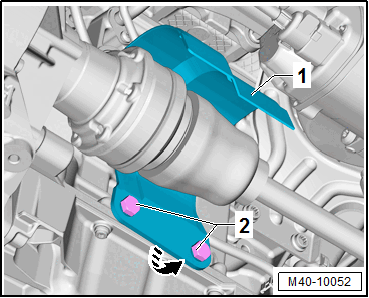

-- Remove the bolts -2-.
-- Remove the drive axle heat shield -1-.
AWD Vehicles
-- Remove the bevel box. Refer to BEVEL BOX, REMOVING .
Continuation for All Vehicles
-- Remove the six converter nuts -arrow- with the :V/175 .
-- To do so, turn the engine an additional 60° in the direction of engine rotation -arrow- using the :T10172A .
If all six torque converter nuts are not removed, the torque converter will be pulled out when removing the transmission from the engine!
Use the :T03003 to counterhold at the belt pulley/vibration damper when loosening the torque converter nuts.
-- Remove the bolts from the transmission to the engine -3 and 6-.
-- Remove the bolts -arrows- from the left subframe mount for the transmission.
-- Lower the engine/transmission as far as dimension -a- using the spindles on the :10-222A .
-a- = approximately 70 mm
The transmission is disconnected from the engine in this position.
-- Place the :3282 -A- on the :VAS6931 -B-.
Install the :3282 on the transmission as follows with the Mounting Elements:
- The Engine and Gearbox Jack with Transmission Support is positioned under the transmission -1- so that the spindle -left arrow- points forward in the direction of travel.
- The spindle -right arrow- points in the direction of travel to the left.
- The Mounts -C- are positioned in the groove surrounding the transmission fluid pan as shown.
- The Pin -D- locks in the recess on the front right side of the transmission.
-- Install the :3282/29 in the rear hole for the pendulum support bolt on the transmission.
-- Support the transmission by carefully lifting it using the Engine and Gearbox Jack.
-- Remove the last engine/transmission connecting bolt -7 and 8-.
-- Pry up the transmission -3- from the engine at the same time push the torque converter -1- against the transmission in the direction of -arrow- using for example a screwdriver -2-.
-- Carefully drain the transmission, ensure >>clearance<< to other components.
-- After the removing the transmission, secure the torque converter from falling. Refer to Fig 5.
-- Install the transmission. Refer to TRANSMISSION, INSTALLING .
