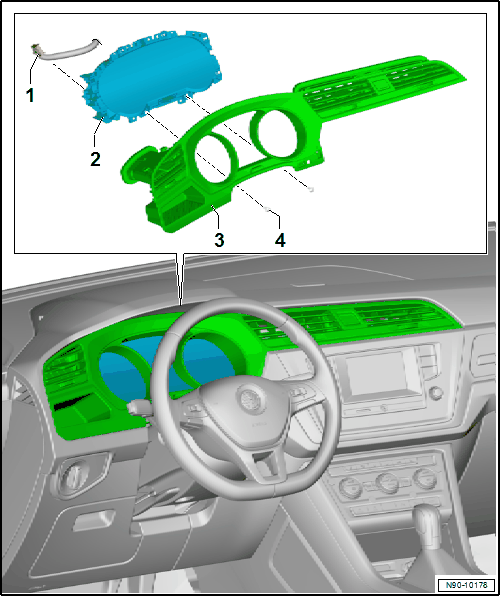

Overview - Instrument Cluster
WARNING: This page is about a different car, the 2022 Volkswagen Tiguan. However, it is still accessible from the selected car via links, so may be relevant.
- Connector
- Instrument Cluster -KX2-
- With Instrument Cluster Control Module -J285-
- Removing and Installing. Refer to Instrument Cluster -KX2-, REMOVING AND INSTALLING .
- Instrument Cluster Trim
- Removing and Installing. Refer to INSTRUMENT CLUSTER TRIM, REMOVING AND INSTALLING .
- Bolts
- Quantity: 2
- 1.5 Nm
