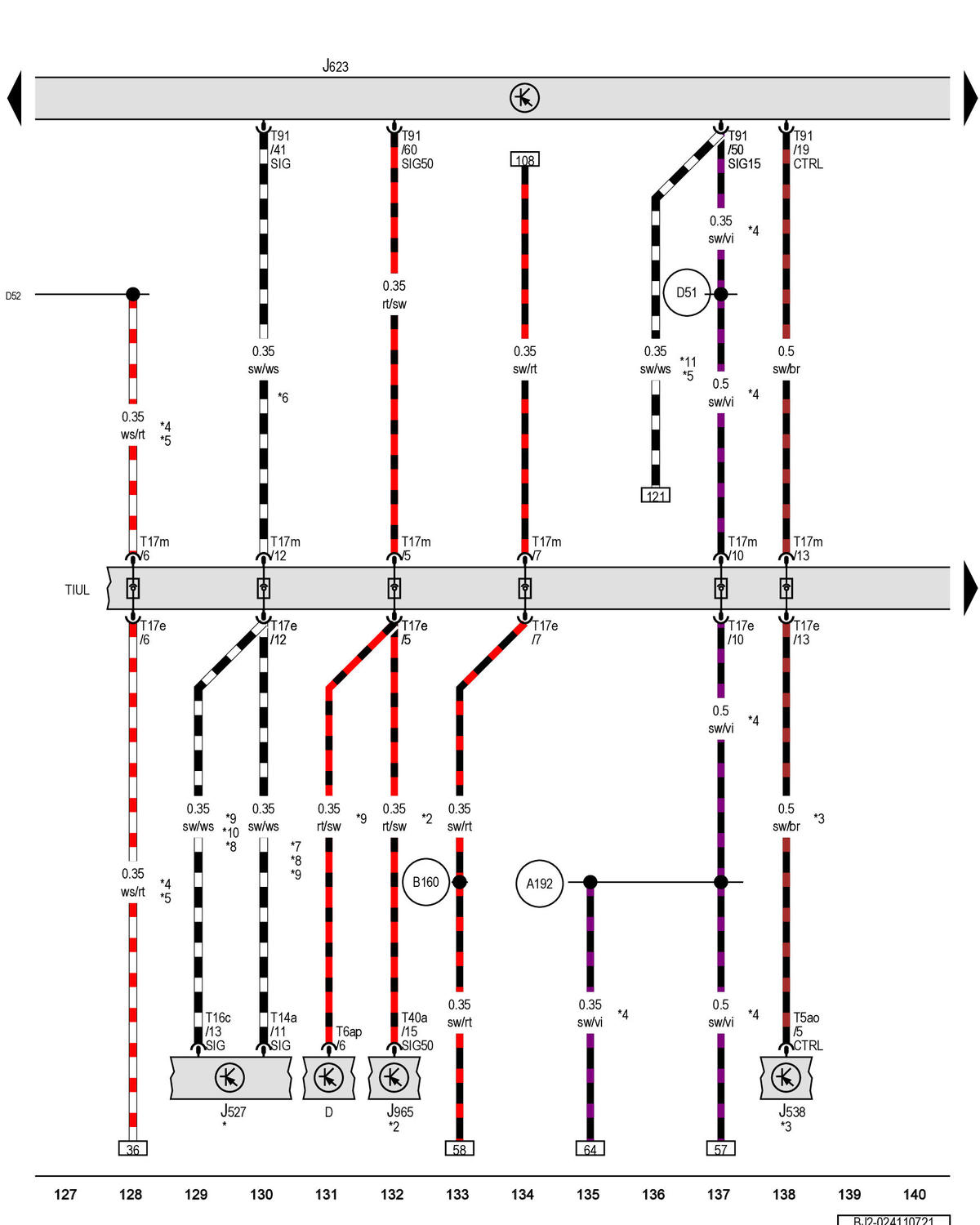

Ignition/Starter Switch, Steering Column Electronics Control Module, Fuel Pump Control Module, Engine/Motor Control Module, Access/Start System Interface
D - Ignition/Starter Switch
J527 - Steering Column Electronics Control Module
J538 - Fuel Pump Control Module
J623 - Engine/Motor Control Module
J965 - Access/Start System Interface
T5ao - 5-Pin Connector, Black
T6ap - 6-Pin Connector, Black
T14a - 14-Pin Connector, Black
T16c - 16-Pin Connector, Black
T17e - 17-Pin Connector, Blue
T17m - 17-Pin Connector, Blue
T40a - 40-Pin Connector, Black
T91 - 91-Pin Connector, Black
TIUL - Coupling Point in Interior, Bottom Left
A192 - Positive Connection 3 (15a) (in Instrument Panel Wiring Harness)
B160 - Brake System Monitoring Connection (in Interior Wiring Harness)
D51 - Positive Connection 1 (15) (in Engine/Motor Compartment Wiring Harness)
D52 - Positive Connection (15a) (in Engine/Motor Compartment Wiring Harness)
* - Refer to Applicable Steering Column Electronics Wiring Diagram
*2 - For Vehicles with Cruise Control System
*3 - For Vehicles with Access/Start Authorization System
*4 - Refer to the Applicable Access/Start Authorization System Wiring Diagram
*5 - Refer to Applicable Fuel System Wiring Diagram
*6 - For Vehicles Without Engine Remote Start
*7 - For Vehicles with Engine Remote Start Setup
*8 - For Vehicles with Cruise Control System
*9 - For Vehicles with Heated Steering Wheel
*10 - For Vehicles Without Heated Steering Wheel
*11 - For Vehicles with Engine Remote Start
