Overview - Assembly Mounts, Final Drive 0CR

Replace the bonded rubber bushings >>in pairs<< (upper and lower bearings).

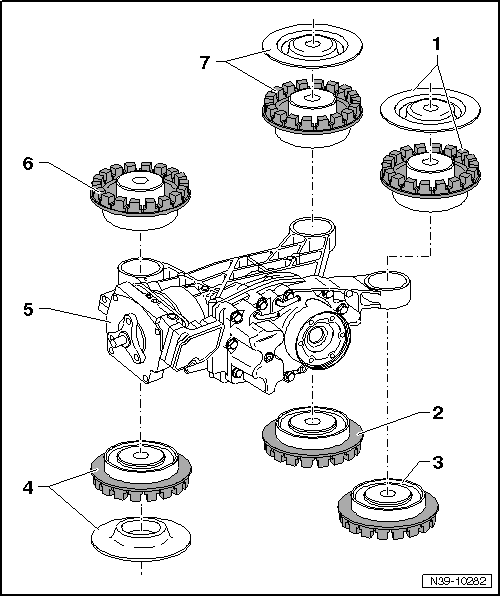

Fig 1: Bonded Rubber Bushing, Assembly Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. "Upper Rear" Bonded Rubber Bushing
   • With stop washer
   • Remove the stop washer for removal and installation
   • Removing and Installing. Refer to BONDED RUBBER BUSHING, REMOVING AND INSTALLING, FINAL DRIVE 0CR .
2. "Lower Rear" Bonded Rubber Bushing
   • Without stop washer
   • Removing and Installing. Refer to BONDED RUBBER BUSHING, REMOVING AND INSTALLING, FINAL DRIVE 0CR .
3. "Lower Rear" Bonded Rubber Bushing
   • Without stop washer
   • Removing and Installing. Refer to BONDED RUBBER BUSHING, REMOVING AND INSTALLING, FINAL DRIVE 0CR .
4. "Lower Front" Bonded Rubber Bushing
   • With stop washer
   • Remove the stop washer for removal and installation
   • Removing and Installing. Refer to BONDED RUBBER BUSHING, REMOVING AND INSTALLING, FINAL DRIVE 0CR .
5. Rear Final Drive
   • Remove to replace the bonded rubber bushing. Refer to FINAL DRIVE, REMOVING AND INSTALLING .
6. "Upper Front" Bonded Rubber Bushing
   • Without stop washer
   • Removing and Installing. Refer to BONDED RUBBER BUSHING, REMOVING AND INSTALLING, FINAL DRIVE 0CR .
7. "Upper Rear" Bonded Rubber Bushing
   • With stop washer
   • Remove the stop washer for removal and installation
   • Removing and Installing. Refer to BONDED RUBBER BUSHING, REMOVING AND INSTALLING, FINAL DRIVE 0CR .
