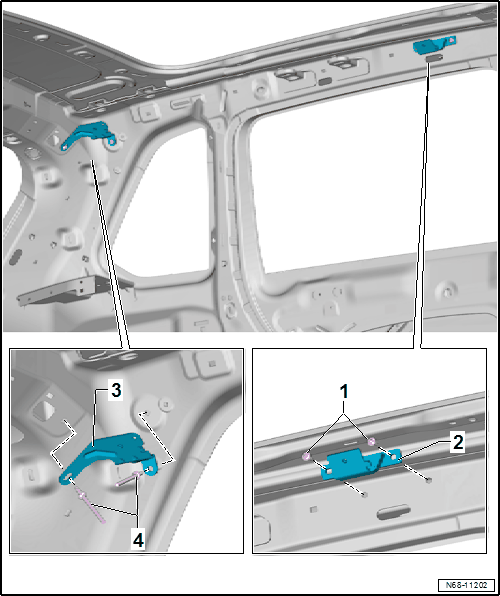

Screen Separator Bracket, Removing And Installing: Notes

The following describes the removing and installing on the left side of the vehicle. Removing and installing on the right side is similar.

Special tools and workshop equipment required

• Torque Wrench 1783 - 2-10Nm: VAG1783
  Fig 1: Identifying Torque Wrench

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Pop Rivet Pliers: VAG1753B
  Fig 2: Pop Rivet Pliers

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Drill
• Protective Eyewear

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
