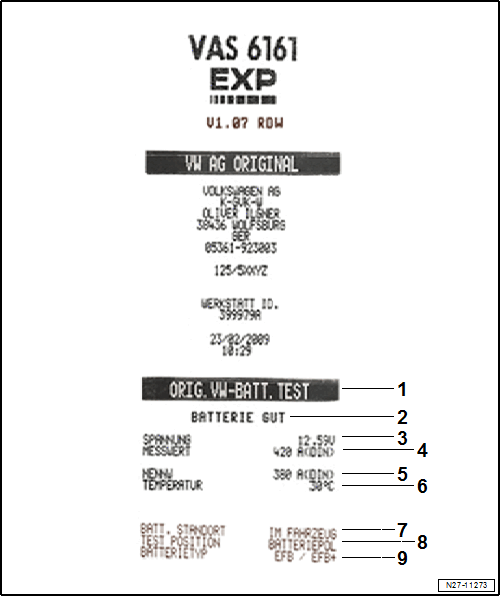

Explanation Of Test Results
NOTE:
The layout of the printed test results can vary depending on the software version.
The printed test results are required for warranty claims.
- Type of test.
- Battery test result.
- Measured voltage.
- Measured cold start value of the battery.
- Cold start nominal value set in the tester
- Measured battery temperature
- Battery installation location
- Location of the battery terminal set in the tester
- Selected battery technology.
