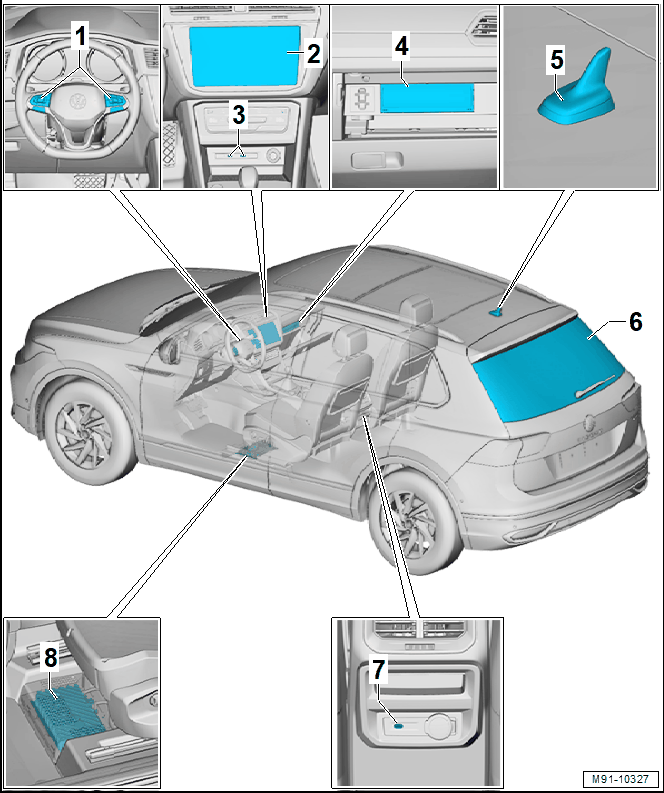

Component Location Overview - Infotainment System
- Multifunction Buttons in Steering Wheel
- Left Multifunction Buttons on Steering Wheel -E440- /Right Multifunction Buttons on Steering Wheel -E441-
- Removing and Installing. Refer to Left Multifunction Buttons on Steering Wheel -E440- /Right Multifunction Buttons on Steering Wheel -E441-, REMOVING AND INSTALLING .
- Front Information Display Control Head -J685-
- Inside the center of the instrument panel
- Removing and Installing. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING .
- Front Center Console Storage Compartment USB Connection
- Depending on vehicle equipment in the center console storage compartment
- Removing and Installing. Refer to CONNECTION FOR EXTERNAL MULTIMEDIA DEVICES, REMOVING AND INSTALLING, USB CONNECTION IN FRONT CENTER CONSOLE STORAGE COMPARTMENT .
- Information Electronics Control Module 1 -J794-
- In the glove compartment
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- Roof Antenna -RX5-
- Depending on vehicle equipment with GPS Antenna -R50-
- Depending on vehicle equipment with GSM Antenna -R205-
- Depending on vehicle equipment with Satellite Antenna -R170-
- Removing and Installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
- Rear Window Antennas
- USB Charging Socket 1 -U37-
- Removing and Installing. Refer to USB Charging Socket 1 -U37-, REMOVING AND INSTALLING .
- Digital Sound System Control Module -J525-
- Depending on vehicle equipment under the left front seat
- Removing and Installing. Refer to Digital Sound System Control Module -J525-, REMOVING AND INSTALLING .
