Coolant Expansion Tank, Removing And Installing: Installing

Install in the reverse order of removal while noting the following:

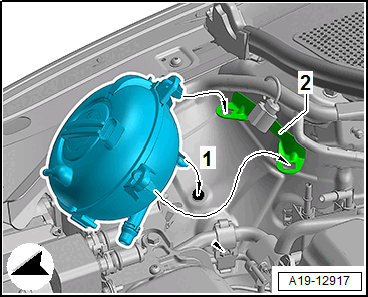

-- Guide the guide piece -1- into the opening in the body.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tilt the coolant expansion tank into the bracket -2- on the suspension strut tower and push downward to the catch. Pull to check that the catch is secure.

-- Check the coolant level and fill, if necessary. Refer to Check the coolant level: .
