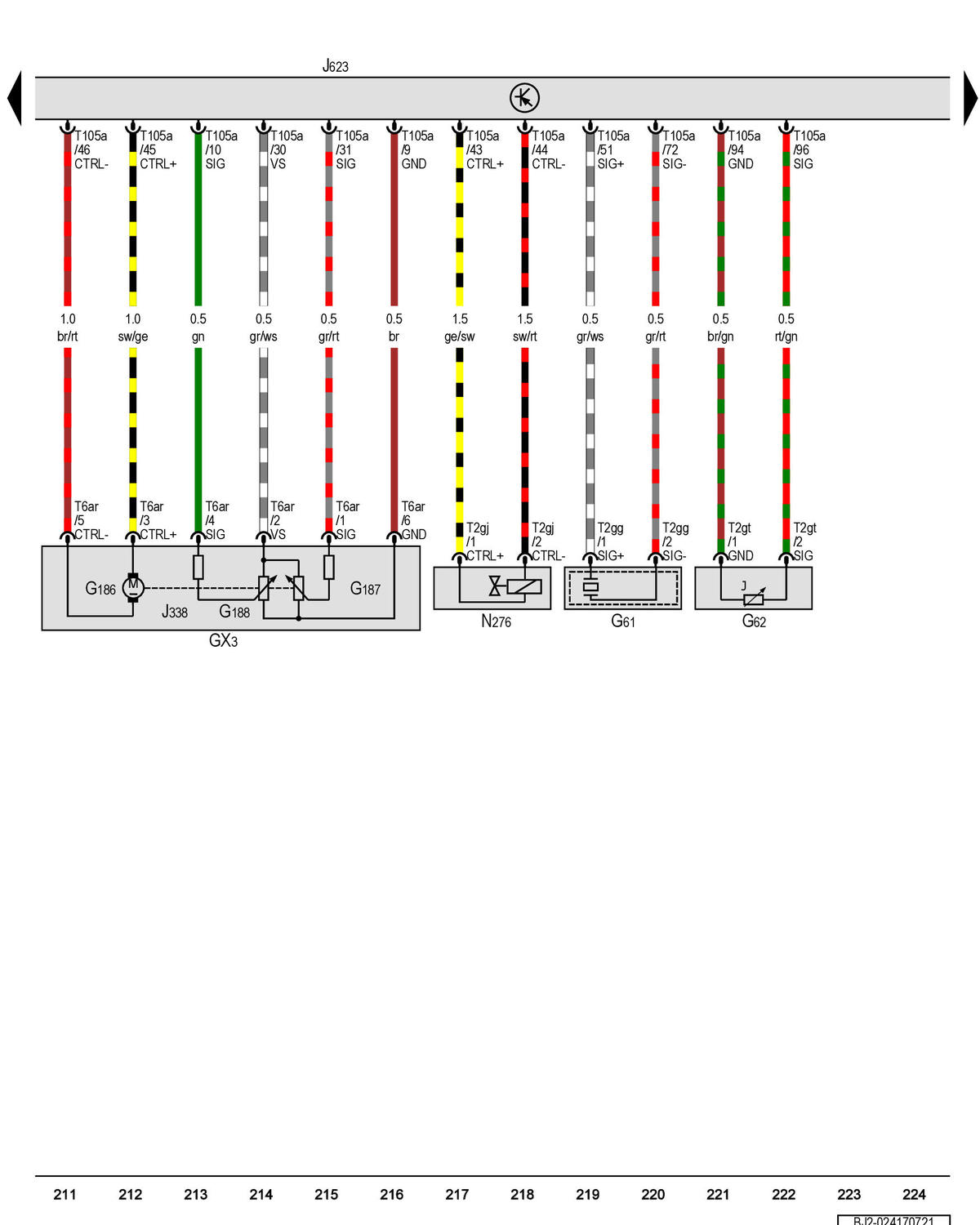

Throttle Valve Control Module, Knock Sensor 1, Engine Coolant Temperature Sensor, Engine/Motor Control Module, Fuel Pressure Regulator Valve

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

GX3 -  Throttle Valve Control Module

G61 -  Knock Sensor 1

G62 -  Engine Coolant Temperature Sensor

G186 -  EPC Throttle Drive

G187 -  EPC Throttle Drive Angle Sensor 1

G188 -  EPC Throttle Drive Angle Sensor 2

J338 -  Throttle Valve Control Module

J623 -  Engine/Motor Control Module

N276 -  Fuel Pressure Regulator Valve

T2gg -  2-Pin Connector, Black

T2gj -  2-Pin Connector, Black

T2gt -  2-Pin Connector, Black

T6ar -  6-Pin Connector, Black

T105a -  105-Pin Connector, Black
