Catalytic Converter, Removing And Installing: Removing

Fig 1: Heated Oxygen Sensors

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

During installation, all cable ties must be installed at the same location.

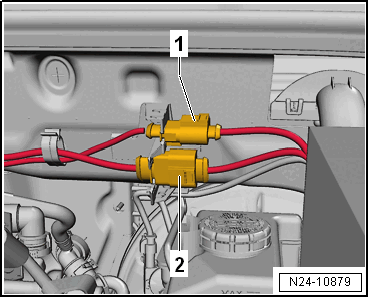

-- Remove the connector -1- from the bracket, disconnect it and free up the wires.

-- Loosen the clamp -1- for the catalytic converter -2- and push the clamp on the turbocharger.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .

-- Remove the center underbody trim panels. Refer to UNDERBODY TRIM PANELS, REMOVING AND INSTALLING .

-- Loosen the retainer -arrows- for the heat shield -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

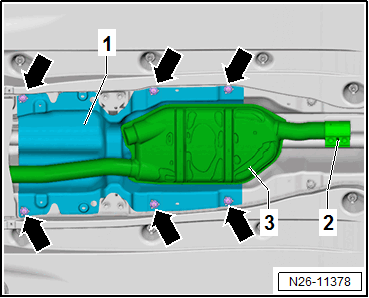

-- Loosen the clamping sleeve -2- and slide it toward the rear.

-- Slightly lower the front muffler -3- and remove the heat shield -1-.

-- Push the clamping sleeve -2- back on both exhaust pipes.

-- Remove the bolts -arrows- and the heat shield -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

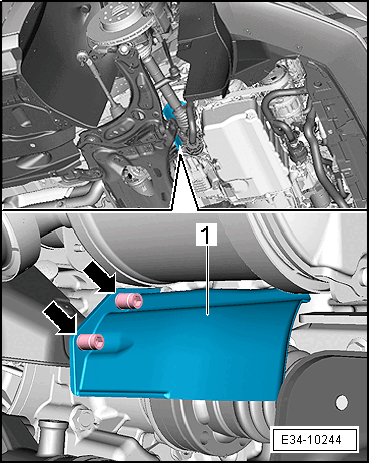

-- Remove the bolts -A and B- on the bevel box and remove the heat shield -1-.

Fig 2: Driveshaft Heat Shield

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Mark the position of the driveshaft to the flange on the bevel box.

Fig 3: Mark Position Of Driveshaft

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- To loosen or tighten, counterhold the driveshaft on the rear final drive.

Fig 4: Counterholding Rear Final Drive To Loosen And Tighten Driveshaft

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the driveshaft on the front bevel box -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the pendulum support. Refer to PENDULUM SUPPORT, REMOVING AND INSTALLING .

-- When removing and installing the puller always pay attention that the bushing -arrow- is not damaged.

Fig 5: Identifying Driveshaft Flange Shaft Seal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position the Engine Support: T10533 as shown and tighten the bolts hand-tight.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the engine with the Engine Support: T10533 as far forward as possible.

Bolt -3- = pendulum support original bolt
Install a M8 x 30 mm bolt -1- with a washer -2- in the threaded hole of the noise insulation.
-A- flat side
-B- high side

-- Remove the driveshaft from the bevel box and place it to the left.

-- Tape off or cover the driveshaft in the front area with a cleaning cloth to prevent damage to the surface protection.

-- Remove the nuts -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Danger of causing damage to the decoupling element!

Do not bend the decoupling element more than 10°. Do not damage the wire mesh on the decoupling element.

-- Remove the bolts -arrows-.

Fig 6: Identifying Exhaust System Bracket (Suspended Mount) Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

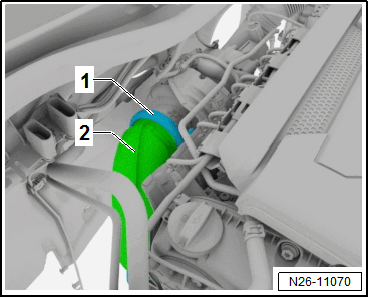

-- Loosen the clamping sleeve -arrow- and push it toward the rear. Have a second technician hold the exhaust pipe firmly while doing so.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Guide out the catalytic converter with the front exhaust pipe.
