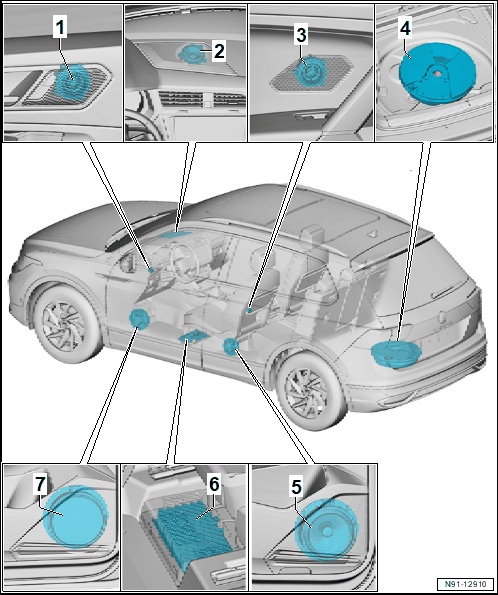

Component Location Overview - Sound System
- Front Treble Speaker
- Left Front Treble Speaker -R20-
- Right Front Treble Speaker -R22-
- In the upper front door trim panel
- Removing and Installing. Refer to Left Front Treble Speaker -R20- /Right Front Treble Speaker -R22-, REMOVING AND INSTALLING .
- Center Speaker -R208-
- Inside the center of the instrument panel
- Removing and Installing. Refer to CENTER SPEAKER, REMOVING AND INSTALLING .
- Rear Treble Speaker
- Left Rear Treble Speaker -R14-
- Right Rear Treble Speaker -R16-
- In the center rear door trim panels
- Removing and Installing. Refer to Left Rear Treble Speaker -R14- /Right Rear Treble Speaker -R16-, REMOVING AND INSTALLING .
- Subwoofer -R211-
- In the spare wheel well
- Removing and Installing. Refer to Subwoofer -R211-, REMOVING AND INSTALLING .
- Rear Bass Speaker
- Left Rear Bass Speaker -R15-
- Right Rear Bass Speaker -R17-
- In bottom of rear doors
- Removing and Installing. Refer to Left Rear Bass Speaker -R15- /Right Rear Bass Speaker -R17-, REMOVING AND INSTALLING .
- Digital Sound System Control Module -J525-
- Under the left front seat
- Removing and Installing. Refer to Digital Sound System Control Module -J525-, REMOVING AND INSTALLING .
- Front Bass Speaker
- Left Front Bass Speaker -R21-
- Right Front Bass Speaker -R23-
- In bottom of front doors
- Removing and Installing. Refer to Left Front Bass Speaker -R21- /Right Front Bass Speaker -R23-, REMOVING AND INSTALLING .
