Mounting Bracket, Removing And Installing: Installing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

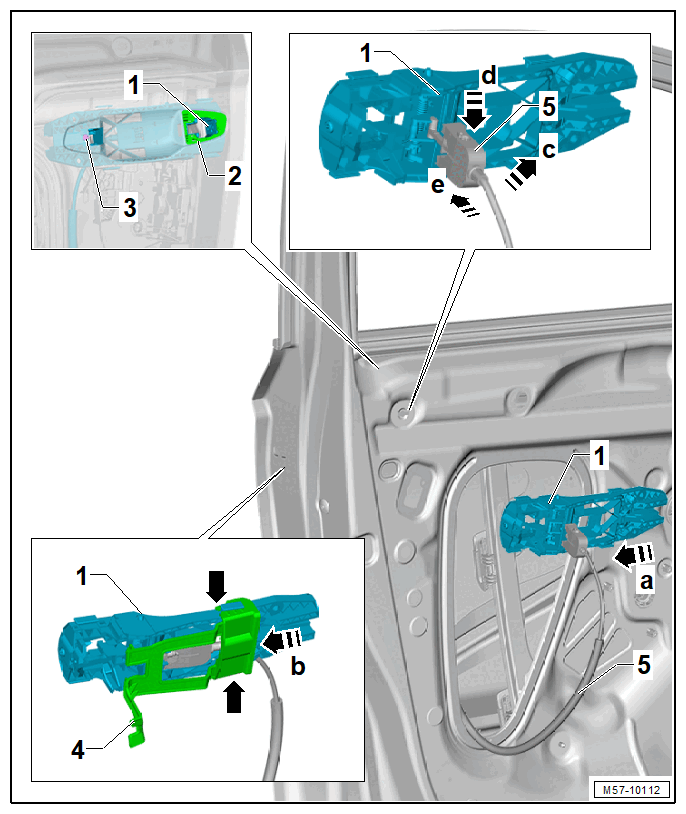

Install the Cable

-- Guide the cable -5- into the mounting bracket -1- -arrow e-.

-- Slide the cable pin into the mount -arrow d-.

-- Pivot the cable mount -5- into the mounting bracket mount -arrow c- and lock.

-- Install the crash clamp -4- -arrow b- and lock -arrows-.

Install the Mounting Bracket

-- Guide the mounting bracket -1- into the front door -arrow a-.

-- Install the washer -3- and tighten the bolt -4- to the tightening specification.

Install in reverse order of removal. Note the following:
