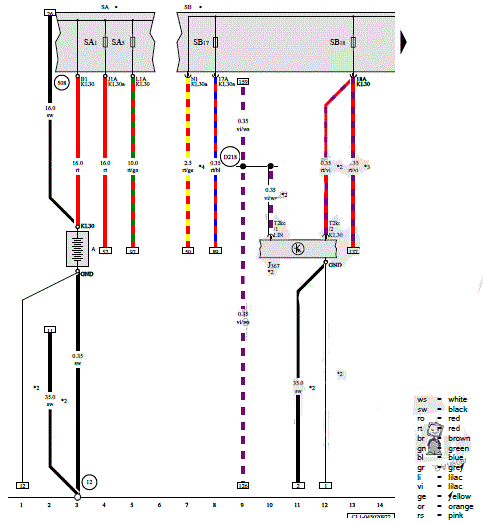

Battery, Battery Monitoring Control Module, Fuse Panel A, Fuse Panel B

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

A

Battery Type:BT, Slpdok:, Aim:BTA

J367

Battery Monitoring Control Module Type:BT, Slpdok:, Aim:BTJ367

SA

Fuse Panel A Type:BT, Slpdok:, Aim:BTSA-

SA1

Fuse 1 (On Fuse Panel A) Type:BT, Slpdok:, Aim:BTSA-

SA5

Fuse 5 (On Fuse Panel A) Type:BT, Slpdok:, Aim:BTSA-

SB

Fuse Panel B Type:BT, Slpdok:, Aim:BTSB-

SB17

Fuse 17 (On Fuse Panel B) Type:BT, Slpdok:, Aim:BTSB-

SB18

Fuse 18 (On Fuse Panel B) Type:BT, Slpdok:, Aim:BTSB-

T2kc

2-Pin Connector, Black Type:VA, Slpdok:, Aim:VAT2kc

12

Ground Connection in Engine/Motor Compartment, Left Type:VB, Slpdok:, Aim:VB12

508

Terminal 30 Threaded Connection (On E-Box)

D218

Connection 1 (LIN Bus) (in Engine/Motor Compartment Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuses in Engine/Motor Compartment

*2

For Vehicles with Start/Stop System

*3

For Vehicles Without Start/Stop System

*4

For Vehicles with Automatic Transmission (DSG)
