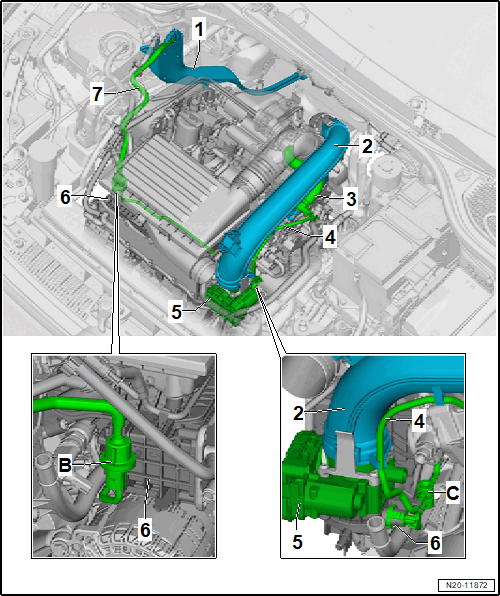

Connection Diagram - Engine/Motor Compartment EVAP System, Vehicles With 1.4L Engine
- 1 -
Separating Point
- For the vent/fuel lines
- 2 -
Air Duct Pipe
- Between Throttle Valve Control Module -GX3- and turbocharger
- Overview. Refer to OVERVIEW - CHARGE AIR SYSTEM .
- Removing and Installing. Refer to AIR DUCT PIPE, REMOVING AND INSTALLING
- 3 -
Bleeder Line
- For the crankcase ventilation
- 4 -
Bleeder Line
- Between the check valve -C-, intake manifold -6- and EVAP Canister Purge Regulator Valve 1 -N80- -B-
- 5 -
Throttle Valve Control Module -GX3-
- Overview. Refer to OVERVIEW - INTAKE MANIFOLD .
- Removing and Installing. Refer to Throttle Valve Control Module -GX3-, REMOVING AND INSTALLING .
- 6 -
Intake Manifold
- Overview. Refer to OVERVIEW - INTAKE MANIFOLD .
- Removing and Installing. Refer to INTAKE MANIFOLD, REMOVING AND INSTALLING .
- 7 -
Bleeder Line
- Between the separating point -1- and EVAP Canister Purge Regulator Valve 1 -N80- -B-
- B - EVAP Canister Purge Regulator Valve 1 -N80-
- C - Check Valve
