Overview - Rear Side Window

NOTE:

The illustration shows the left side. The right side is identical.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

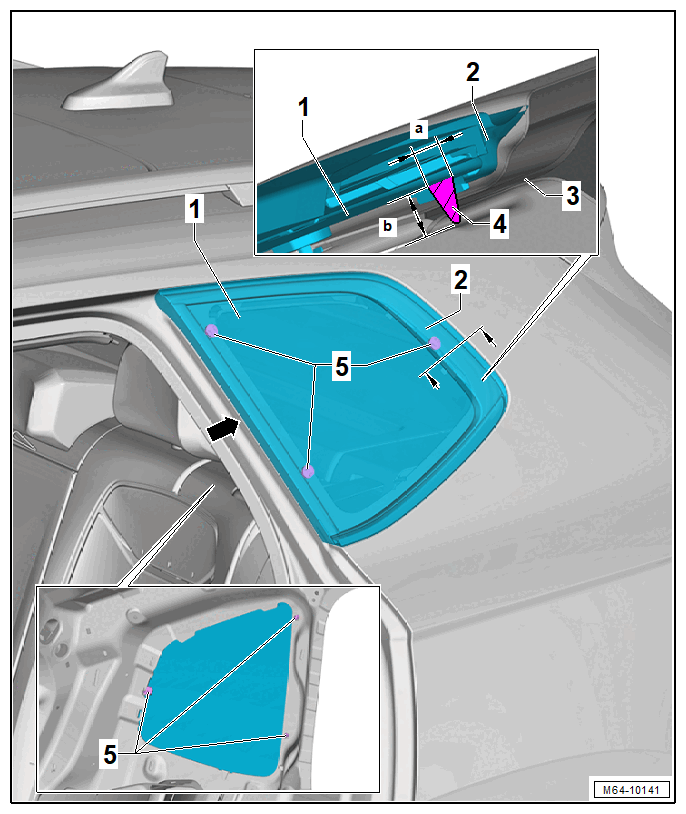

Rear Side Window
- Removing and Installing. Refer to REAR SIDE WINDOW, REMOVING AND INSTALLING .
Seal
- Component of the rear side window
Body Flange
- Prepare the body flange for installation. Refer to BODY FLANGE, PREPARING FOR INSTALLATION .
PUR Adhesive Sealant
- Adhesive bead diameter including precoating, residual material on the window glass and window glass flange
  Dimension -a- = 6.5 mm ± 0.5 mm

  Dimension -b- = 10.0 mm ± 1.0 mm
- Beginning and end of the adhesive bead at the -arrow-
- Minimum Curing Time. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
Centering Pin
- Quantity: 3
- A cut-out window glass can be reinstalled without these centering pins.
