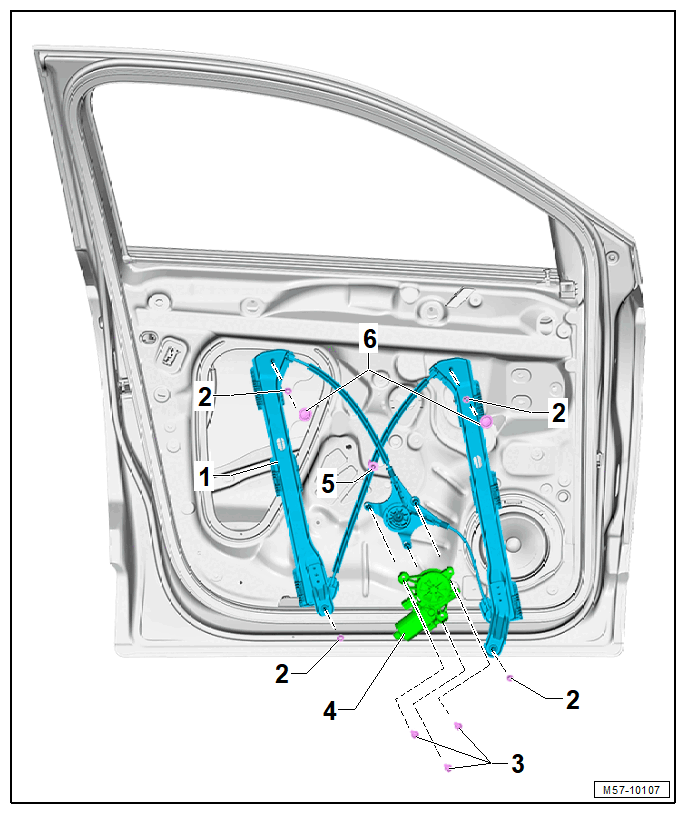

Overview - Window Regulator
NOTE:
The illustration shows the left side. The right side is identical.
- Window Regulator
- Removing and Installing. Refer to WINDOW REGULATOR, REMOVING AND INSTALLING .
- Nut
- 8 Nm
- Quantity: 4
- Bolt
- 3 Nm
- Quantity: 3
- Driver/Front Passenger Window Regulator Motor -V147 / V148-
- Removing and Installing. Refer to WINDOW REGULATOR MOTOR, REMOVING AND INSTALLING .
- Clip
- For attaching the cable
- Plug
- Quantity: 2
