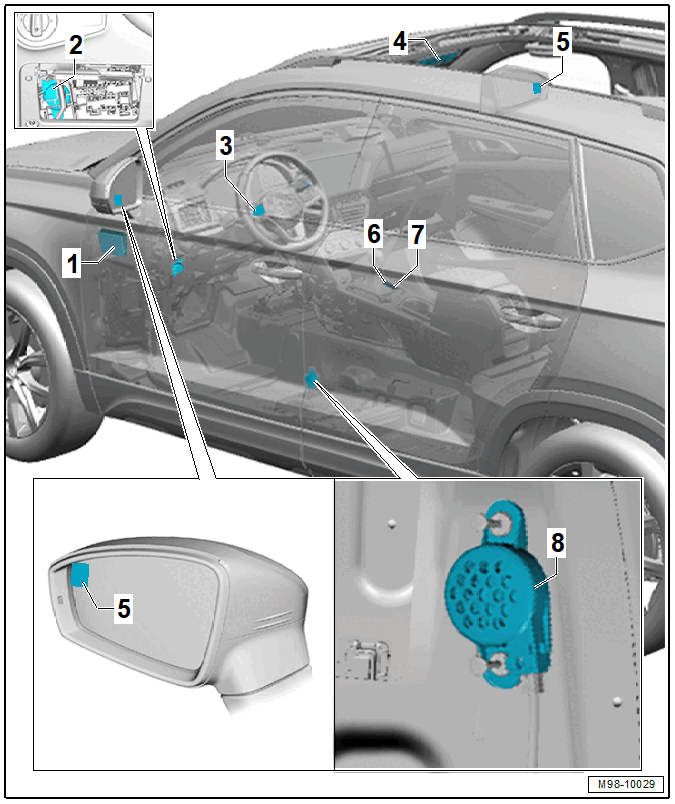

Component Location Overview - Sensors And Control Modules In Center Section Of Vehicle

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Parking Aid Control Module -J446-
   • Refer to PARKING AID / PARALLEL PARKING ASSIST / AUTONOMOUS PARKING
   • Refer to Parking Aid Control Module -J446-, REMOVING AND INSTALLING
2. Front Parking Aid Warning Buzzer -H22-
   • Refer to PARKING AID / PARALLEL PARKING ASSIST / AUTONOMOUS PARKING
   • Refer to Front Parking Aid Warning Buzzer -H22-, REMOVING AND INSTALLING
3. Adaptive Cruise Control Button
   • Refer to ADAPTIVE CRUISE CONTROL (ACC)
   • Refer to the appropriate service information .
4. Driver Assistance Systems Front Camera -R242-
   • Refer to DRIVER ASSISTANCE SYSTEMS FRONT CAMERA
   • Refer to Driver Assistance Systems Front Camera -R242-, REMOVING AND INSTALLING
5. Blind Spot Detection Warning Lamp in Left and Right Exterior Mirror -K303- / -K304-, Removing and Installing
   • Refer to BLIND SPOT DETECTION
   • Refer to BLIND SPOT DETECTION WARNING LAMP IN LEFT AND RIGHT EXTERIOR MIRROR -K303- / -K304-, REMOVING AND INSTALLING
6. Parking Aid Button
   • Refer to PARKING AID / PARALLEL PARKING ASSIST / AUTONOMOUS PARKING
   • Removing and Installing. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN CENTER CONSOLE .
7. Parallel Parking Assistance Button
   • Refer to PARKING AID / PARALLEL PARKING ASSIST / AUTONOMOUS PARKING
   • Removing and Installing. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN CENTER CONSOLE .
8. Rear Parking Aid Warning Buzzer -H15-
   • Refer to PARKING AID / PARALLEL PARKING ASSIST / AUTONOMOUS PARKING
   • Refer to Rear Parking Aid Warning Buzzer -H15-, REMOVING AND INSTALLING
