Overview - Instrument Panel CROSSMEMBER

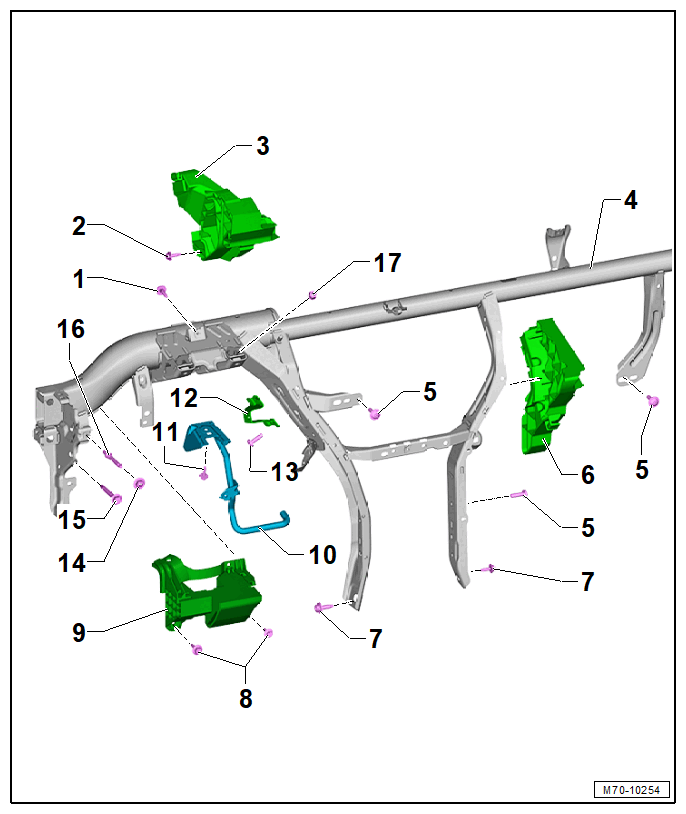

Fig 1: Exploded View Of Instrument Panel Crossmember

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bolt
- 20 Nm
Bolt
- 4.5 Nm
Deformation Element
- Removing and Installing. Refer to DEFORMATION ELEMENT, REMOVING AND INSTALLING, LOWER DRIVER SIDE .
Crossmember
- For the instrument panel
- Removing and Installing. Refer to INSTRUMENT PANEL CROSSMEMBER, REMOVING AND INSTALLING .
Bolt
- Quantity: 3
- 4 Nm
- If one of the screws is overtightened when installing the heater and A/C unit, use the screw: N. 911.981.01 as a replacement.
Deformation Element
- Removing and Installing. Refer to DEFORMATION ELEMENT, REMOVING AND INSTALLING, FRONT PASSENGER SIDE .
Bolt
- Quantity: 2
- 20 Nm
Bolt
- Quantity: 2
- 4.5 Nm
Deformation Element
- Removing and Installing. Refer to DEFORMATION ELEMENT, REMOVING AND INSTALLING, UPPER DRIVER SIDE .
Crash Bolster
- Removing and Installing. Refer to CRASH BOLSTER, REMOVING AND INSTALLING .
Bolt
- 20 Nm
Bracket
- For the deformation element -item : Deformation Element
Bolt
- Quantity: 2
- 2.5 Nm
Nut
- Quantity: 2
- 20 Nm
Bolt
- Only driver side
- 4.5 Nm
Threaded Pins
- Quantity: 2
- 20 Nm
Nut
- For the crossmember ground connection
- 9 Nm
