Exhaust Camshaft Position Sensor -G1003-, REMOVING AND INSTALLING
The exhaust camshaft position sensor cannot be replaced at this time.
If faulty, replace the camshaft housing.
The factory installed sensor and ignition system are not suitable for checking and repair purposes. Interchanging sensors from the ignition system can lead to engine malfunction and drivability problems.
- Only replace the factory installed sensor with the corresponding sensor according to the Electronic Parts Information (ETKA).
- Do not use the factory installed sensor for checking and repair purposes.
- Do not interchange the sensors with each other or between different vehicles.
Removing
-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

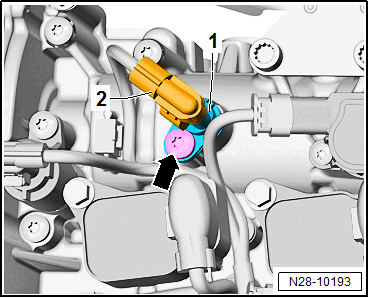

-- Release and disconnect the connector -2-.
-- Remove the bolt -arrow- and remove the Exhaust Camshaft Position Sensor -G1003- -1-.
Installing:
Install in reverse order of removal. Note the following:
-- Check the O-ring for damage and if necessary replace.
-- Install the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .
Tightening Specifications
- Refer to OVERVIEW - IGNITION SYSTEM
